# コード名: py_synth_v43_midi_monitor
# バージョン: 43.0 (MIDI Monitor Edition)
# Description: 受信したMIDIデータをリアルタイムでログ表示するモニター機能を追加。音切れ防止・ベロシティ補正済み。

import os
os.environ['OMP_NUM_THREADS'] = '1'

import sys
import time
import threading
import gc
import math
import numpy as np
import rtmidi
import fluidsynth
import tkinter as tk
from tkinter import ttk
from tkinter import filedialog
from contextlib import contextmanager

# --- ライブラリ ---
try:
    import sounddevice as sd
except ImportError:
    sys.exit("Error: pip install sounddevice")
try:
    import mido
except ImportError:
    sys.exit("Error: pip install mido")
try:
    from scipy.signal import lfilter
except ImportError:
    sys.exit("Error: pip install scipy")

# --- 設定 ---
TARGET_DEVICE_KEYWORD = "USB"
SAMPLE_RATE = 48000
BLOCK_SIZE = 4096
CHANNELS = 2
DTYPE = 'int16'
MASTER_GAIN_DEFAULT = 0.5
SF2_PATH = "/usr/share/sounds/sf2/FluidR3_GM.sf2"

is_running = True
AUDIO_DEVICE_NAME = "Searching..."
AUDIO_DEVICE_ID = None
MIDI_PORT_NAME = "Searching..."

# --- GM楽器名 ---
GM_INSTRUMENTS = [
    "Grand Piano", "Bright Piano", "E.Grand Piano", "Honky-tonk", "E.Piano 1", "E.Piano 2", "Harpsichord", "Clavinet",
    "Celesta", "Glockenspiel", "Music Box", "Vibraphone", "Marimba", "Xylophone", "Tubular Bells", "Dulcimer",
    "Drawbar Organ", "Percussive Organ", "Rock Organ", "Church Organ", "Reed Organ", "Accordion", "Harmonica", "Tango Accordion",
    "Guit(Nylon)", "Guit(Steel)", "Guit(Jazz)", "Guit(Clean)", "Guit(Muted)", "Guit(Overdrive)", "Guit(Distortion)", "Guit(Harmonics)",
    "Acoustic Bass", "E.Bass(Finger)", "E.Bass(Pick)", "Fretless Bass", "Slap Bass 1", "Slap Bass 2", "Synth Bass 1", "Synth Bass 2",
    "Violin", "Viola", "Cello", "Contrabass", "Tremolo Strings", "Pizzicato Strings", "Orchestral Harp", "Timpani",
    "Strings 1", "Strings 2", "SynthStrings 1", "SynthStrings 2", "Choir Aahs", "Voice Oohs", "Synth Voice", "Orchestra Hit",
    "Trumpet", "Trombone", "Tuba", "Muted Trumpet", "French Horn", "Brass Section", "Synth Brass 1", "Synth Brass 2",
    "Soprano Sax", "Alto Sax", "Tenor Sax", "Baritone Sax", "Oboe", "English Horn", "Bassoon", "Clarinet",
    "Piccolo", "Flute", "Recorder", "Pan Flute", "Blown Bottle", "Shakuhachi", "Whistle", "Ocarina",
    "Lead 1 (square)", "Lead 2 (saw)", "Lead 3 (calliope)", "Lead 4 (chiff)", "Lead 5 (charang)", "Lead 6 (voice)", "Lead 7 (fifths)", "Lead 8 (bass+lead)",
    "Pad 1 (new age)", "Pad 2 (warm)", "Pad 3 (polysynth)", "Pad 4 (choir)", "Pad 5 (bowed)", "Pad 6 (metallic)", "Pad 7 (halo)", "Pad 8 (sweep)",
    "FX 1 (rain)", "FX 2 (soundtrack)", "FX 3 (crystal)", "FX 4 (atmosphere)", "FX 5 (brightness)", "FX 6 (goblins)", "FX 7 (echoes)", "FX 8 (sci-fi)",
    "Sitar", "Banjo", "Shamisen", "Koto", "Kalimba", "Bag pipe", "Fiddle", "Shanai",
    "Tinkle Bell", "Agogo", "Steel Drums", "Woodblock", "Taiko Drum", "Melodic Tom", "Synth Drum", "Reverse Cymbal",
    "Guit Fret Noise", "Breath Noise", "Seashore", "Bird Tweet", "Telephone Ring", "Helicopter", "Applause", "Gunshot"
]

@contextmanager
def ignore_stderr():
    try:
        devnull = os.open(os.devnull, os.O_WRONLY)
        old_stderr = os.dup(2)
        sys.stderr.flush()
        os.dup2(devnull, 2)
        os.close(devnull)
        try: yield
        finally: os.dup2(old_stderr, 2); os.close(old_stderr)
    except: yield

class SynthParams:
    def __init__(self):
        self.engine_mode = "ANALOG"
        self.master_gain = MASTER_GAIN_DEFAULT
        self.waveform = "sawtooth"
        self.lfo_rate = 5.0; self.lfo_depth = 0.0
        self.filter_mode = "LPF"; self.cutoff_base = 1000.0; self.resonance = 0.5; self.vcf_env_amt = 4000.0
        self.vcf_attack = 0.1; self.vcf_decay = 0.3; self.vcf_sustain = 0.4; self.vcf_release = 0.5
        self.amp_attack = 0.05; self.amp_decay = 0.2; self.amp_sustain = 0.6; self.amp_release = 0.5
        self.sf_program = 0; self.sf_vol = 1.0
        self.digital_filter_on = True

params = SynthParams()

class FluidManager:
    def __init__(self):
        self.fs = None; self.ready = False
    def init_synth(self):
        try:
            self.fs = fluidsynth.Synth()
            self.fs.setting('synth.sample-rate', float(SAMPLE_RATE))
            self.fs.setting('synth.gain', 1.0)
            self.fs.setting('synth.polyphony', 32)
            self.fs.setting('synth.reverb.active', 0)
            self.fs.setting('synth.chorus.active', 0)
            sfid = self.fs.sfload(SF2_PATH)
            self.fs.program_select(0, sfid, 0, 0)
            self.ready = True
            print("FluidSynth Ready.")
        except Exception as e:
            print(f"FluidSynth Error: {e}"); self.ready = False
    def get_samples(self, n):
        if not self.ready: return np.zeros(n * 2, dtype=np.int16)
        return np.array(self.fs.get_samples(n), dtype=np.int16)
    def note_on(self, n, v):
        if self.ready: self.fs.noteon(0, n, v)
    def note_off(self, n):
        if self.ready: self.fs.noteoff(0, n)
    def change_program(self, p):
        if self.ready: self.fs.program_change(0, int(p))

fluid_engine = FluidManager()

def design_biquad(mode, fc, q, fs):
    w0=2*math.pi*fc/fs; alpha=math.sin(w0)/(2*q); c=math.cos(w0); a0=1+alpha
    if mode=="LPF": b=[(1-c)/2, 1-c, (1-c)/2]
    elif mode=="HPF": b=[(1+c)/2, -(1+c), (1+c)/2]
    elif mode=="BPF": b=[alpha, 0, -alpha]
    else: return [1,0,0],[1,0,0]
    return np.array(b)/a0, np.array([1+alpha,-2*c,1-alpha])/a0

class ADSREnvelope:
    def __init__(self, is_amp=True):
        self.state='IDLE'; self.level=0.0; self.is_amp=is_amp
    def trigger(self): self.state='ATTACK'
    def release(self): self.state='RELEASE'
    def get_val(self):
        if self.is_amp: a,d,s,r = params.amp_attack,params.amp_decay,params.amp_sustain,params.amp_release
        else: a,d,s,r = params.vcf_attack,params.vcf_decay,params.vcf_sustain,params.vcf_release
        step = float(BLOCK_SIZE)/SAMPLE_RATE
        if self.state=='ATTACK':
            self.level+=step/max(a,0.001);
            if self.level>=1.0: self.level,self.state=1.0,'DECAY'
        elif self.state=='DECAY':
            self.level-=(step/max(d,0.001))*(1.0-s);
            if self.level<=s: self.level,self.state=s,'SUSTAIN'
        elif self.state=='SUSTAIN': self.level=s
        elif self.state=='RELEASE':
            self.level-=step/max(r,0.001);
            if self.level<=0.0: self.level,self.state=0.0,'IDLE'
        return self.level

class StereoMasterFilter:
    def __init__(self): self.zi = np.zeros((2, 2))
    def process(self, sig_stereo_int16, cut, res):
        sig_float = sig_stereo_int16.astype(np.float32) / 32768.0
        fc = max(50.0, min(cut, SAMPLE_RATE * 0.45)); q = 0.7 + (res * 9.0)
        b, a = design_biquad(params.filter_mode, fc, q, SAMPLE_RATE)
        sig_reshaped = sig_float.reshape(-1, 2)
        out_reshaped, self.zi = lfilter(b, a, sig_reshaped, axis=0, zi=self.zi)
        return np.clip(out_reshaped.flatten() * 32768.0, -32768, 32767).astype(np.int16)

class Oscillator:
    def __init__(self): self.p=0.0; self.f=0.0
    def set_f(self,f): self.f=f
    def get(self,n,lfo):
        if self.f==0: return np.zeros(n)
        mf=self.f+(lfo*params.lfo_depth*10.0)
        ph=self.p+np.cumsum(np.full(n,1.0))*(mf/SAMPLE_RATE)
        self.p=ph[-1]%1.0; ph%=1.0
        w=params.waveform
        if w=='sawtooth': return 2.0*(ph-0.5)
        elif w=='square': return np.sign(np.sin(2*np.pi*ph))
        elif w=='sine': return np.sin(2*np.pi*ph)
        return 2.0*np.abs(2.0*(ph-0.5))-1.0

class LFO:
    def __init__(self): self.p=0.0
    def get(self,n):
        t=(np.arange(n)+self.p)/SAMPLE_RATE; self.p+=n
        if self.p>SAMPLE_RATE: self.p-=SAMPLE_RATE
        return np.sin(2*np.pi*params.lfo_rate*t)

vco=Oscillator(); lfo=LFO(); amp=ADSREnvelope(True); vcf=ADSREnvelope(False)
master_filter = StereoMasterFilter()
active_note=None

# --- GUI Manager with MIDI Log ---
class GUIManager:
    def __init__(self):
        self.root = None; self.btn_engine = None; self.instr_label = None; self.btn_filter = None
        self.disp_a=None; self.disp_d=None; self.disp_s=None; self.disp_r=None
        self.var_vol=None; self.var_cut=None; self.var_res=None
        self.gate_lamp=None; self.scope_canvas=None
        self.lbl_filename=None; self.lbl_wave=None
        self.var_dig_flt = None; self.btn_scope = None
        self.scope_mode = "OFF"; self.last_scope_time = 0
        self.log_text = None # MIDI Log Widget

    def set_gate(self, on_off):
        if self.root and self.gate_lamp:
            color = "#FF0000" if on_off else "#440000"
            try: self.root.after_idle(lambda: self.gate_lamp.itemconfig("lamp", fill=color))
            except: pass
    def update_slider(self, target_var, value):
        if self.root and target_var:
            try: self.root.after_idle(lambda: target_var.set(value))
            except: pass
    def update_wave_label(self, name):
        if self.root and self.lbl_wave:
            try: self.root.after_idle(lambda: self.lbl_wave.config(text=f"WAVE: {name.upper()}"))
            except: pass
    def update_filename(self, text):
        if self.root and self.lbl_filename:
            try: self.root.after_idle(lambda: self.lbl_filename.config(text=text))
            except: pass

    # ★ MIDIログ追加用メソッド
    def log_midi(self, text):
        if self.root and self.log_text:
            try: self.root.after_idle(lambda: self._append_log(text))
            except: pass

    def _append_log(self, text):
        if not self.log_text: return
        self.log_text.config(state='normal')
        self.log_text.insert(tk.END, text + "\n")
        self.log_text.see(tk.END)
        # 行数制限（重くなるのを防ぐため最新50行）
        if int(self.log_text.index('end-1c').split('.')[0]) > 50:
            self.log_text.delete('1.0', '2.0')
        self.log_text.config(state='disabled')

    def toggle_engine(self):
        if params.engine_mode == "ANALOG": params.engine_mode = "DIGITAL"; self.btn_engine.config(text="MODE: DIGITAL (SoundFont)", bg="#44AAEE")
        else: params.engine_mode = "ANALOG"; self.btn_engine.config(text="MODE: ANALOG (Scipy)", bg="#EEAA44")
    def toggle_filter(self):
        modes = ["LPF", "BPF", "HPF"]; current = params.filter_mode
        next_mode = modes[(modes.index(current) + 1) % 3]; params.filter_mode = next_mode
        if self.btn_filter: self.btn_filter.config(text=f"FILTER: {next_mode}")
    def toggle_scope(self):
        if self.scope_mode == "OFF": self.scope_mode = "WAVE"; self.btn_scope.config(text="SCOPE: WAVE", bg="black", fg="#00FF00")
        elif self.scope_mode == "WAVE": self.scope_mode = "FFT"; self.btn_scope.config(text="SCOPE: FFT", bg="#224422", fg="#00FF00")
        else: self.scope_mode = "OFF"; self.btn_scope.config(text="SCOPE: OFF (Stable)", bg="#444444", fg="#AAAAAA");
        if self.scope_canvas: self.scope_canvas.delete("all")
    def draw_scope_scheduled(self, data):
        if self.scope_mode == "OFF" or not self.root or not self.scope_canvas: return
        try:
            w, h = 250, 100; mid = h/2; self.scope_canvas.delete("all"); disp_data = data / 32768.0
            if self.scope_mode == "WAVE":
                self.scope_canvas.create_line(0, mid, w, mid, fill="#003300", dash=(2, 4))
                frames = len(disp_data) // 2; step = max(1, frames // w); pts = []
                for i in range(w):
                    idx = int(i * step) * 2
                    if idx < len(disp_data): pts.extend([i, mid - disp_data[idx] * 40.0])
                if len(pts) > 2: self.scope_canvas.create_line(pts, fill="#00FF00", width=1.5)
            else:
                window = np.hanning(len(disp_data)); fft_res = np.abs(np.fft.rfft(disp_data * window)); fft_res = fft_res / len(disp_data) * 100.0; pts = []
                num_bins = min(len(fft_res), 300)
                for i in range(num_bins):
                    x = i * (w / num_bins); mag = np.clip(fft_res[i] * h * 0.8, 0, h); pts.extend([x, h - mag])
                if len(pts) > 2: self.scope_canvas.create_line(pts, fill="#00FFFF", width=1.5)
        except: pass
    def set_digital_filter(self):
        if self.var_dig_flt: params.digital_filter_on = self.var_dig_flt.get()
    def change_instr_relative(self, delta):
        new_prog = (params.sf_program + delta) % 128; params.sf_program = new_prog; fluid_engine.change_program(new_prog)
        name = GM_INSTRUMENTS[new_prog]
        if self.instr_label: self.instr_label.config(text=f"{new_prog}: {name}", fg="cyan")

gui = GUIManager()

# --- Audio Callback ---
last_audio_data = np.zeros(1024, dtype=np.int16)

def sd_callback(outdata, frames, time_info, status):
    if status: print(f"Stat: {status}", file=sys.stderr)
    if not is_running: outdata.fill(0); return

    if params.engine_mode == "ANALOG":
        raw = vco.get(frames, np.mean(lfo.get(frames)))
        an_mono = raw * amp.get_val()
        an_stereo_int16 = (np.repeat(an_mono, 2) * 0.8 * 32767).astype(np.int16)
    else: an_stereo_int16 = np.zeros(frames * 2, dtype=np.int16)

    dig_stereo_int16 = fluid_engine.get_samples(frames)
    if params.engine_mode == "ANALOG": dig_stereo_int16 *= 0
    else: an_stereo_int16 *= 0

    mixed_int16 = np.clip(an_stereo_int16.astype(np.int32) + dig_stereo_int16.astype(np.int32), -32768, 32767).astype(np.int16)

    apply_filter = False
    if params.engine_mode == "ANALOG": apply_filter = True
    elif params.engine_mode == "DIGITAL": apply_filter = params.digital_filter_on

    if apply_filter:
        v_env = vcf.get_val()
        cut = params.cutoff_base + (params.vcf_env_amt * v_env)
        final_out = master_filter.process(mixed_int16, cut, params.resonance)
    else:
        vcf.get_val(); final_out = mixed_int16

    final_out = (final_out * params.master_gain).astype(np.int16)

    global last_audio_data
    if len(last_audio_data) != len(final_out): last_audio_data = np.zeros_like(final_out)
    last_audio_data[:] = final_out
    outdata[:] = final_out.reshape(-1, 2)

def gui_update_loop():
    if is_running and gui.root:
        gui.draw_scope_scheduled(last_audio_data)
        gui.root.after(100, gui_update_loop)

def handle_cc(n, v):
    norm=v/127.0
    if n==8: params.master_gain=norm; gui.update_slider(gui.var_vol,norm); return
    if n==7: w=["sawtooth","square","sine","triangle"][min(3,int(norm*4))]; params.waveform=w; gui.update_wave_label(w); return
    if n==1: params.lfo_rate=0.1+norm*19.9
    elif n==2: params.lfo_depth=norm
    elif n==3: params.vcf_attack=0.01+norm*2; gui.update_slider(gui.disp_a, params.vcf_attack)
    elif n==4: params.vcf_decay=0.01+norm*2; gui.update_slider(gui.disp_d, params.vcf_decay)
    elif n==5: params.vcf_sustain=norm; gui.update_slider(gui.disp_s, params.vcf_sustain)
    elif n==6: params.vcf_release=0.01+norm*3; gui.update_slider(gui.disp_r, params.vcf_release)

def midi_loop(midi_in):
    while is_running:
        msg = midi_in.get_message()
        if msg:
            m, _ = msg
            if len(m) >= 2: process_midi_event(m[0], m[1], m[2] if len(m)>2 else 0)
        time.sleep(0.001)

def get_note_name(note_num):
    notes = ['C', 'C#', 'D', 'D#', 'E', 'F', 'F#', 'G', 'G#', 'A', 'A#', 'B']
    octave = note_num // 12 - 1
    name = notes[note_num % 12]
    return f"{name}{octave}"

def process_midi_event(status, data1, data2):
    global active_note
    st = status & 0xF0

    # --- ★MIDI LOGGING ---
    log_msg = ""

    if st == 0x90 and data2 > 0: # Note On
        n, v = data1, data2
        v = v + 40
        # Velocity Correction
        if v > 127 : v =127

        log_msg = f"Note On : {get_note_name(n)} ({n}) vel:{v}"

        if params.engine_mode == "ANALOG":
            vco.set_f(440.0*(2**((n-69)/12.0))); amp.trigger(); vcf.trigger(); active_note=n; gui.set_gate(True)
        else:
            fluid_engine.note_on(n, v); vcf.trigger(); gui.set_gate(True)

    elif (st == 0x80) or (st == 0x90 and data2 == 0): # Note Off
        n = data1
        log_msg = f"Note Off: {get_note_name(n)} ({n})"

        if params.engine_mode == "ANALOG":
            if n == active_note: amp.release(); vcf.release(); active_note=None; gui.set_gate(False)
        else:
            fluid_engine.note_off(n); vcf.release(); gui.set_gate(False)

    elif st == 0xB0: # CC
        log_msg = f"Control : #{data1} val:{data2}"
        handle_cc(data1, data2)

    elif st == 0xC0: # PC
        log_msg = f"Prog Chg: {data1} ({GM_INSTRUMENTS[data1] if data1<128 else '?'})"
        if params.engine_mode == "DIGITAL":
            params.sf_program = data1; fluid_engine.change_program(data1)
            name = GM_INSTRUMENTS[data1] if data1 < len(GM_INSTRUMENTS) else "Unknown"
            if gui.root: gui.instr_label.config(text=f"{data1}: {name}", fg="cyan")

    # GUI Log Update
    if log_msg:
        # Append hex raw data
        raw_str = f"[{status:02X} {data1:02X} {data2:02X}]"
        gui.log_midi(f"{raw_str} {log_msg}")

class MidiPlayer:
    def __init__(self): self.filename = None; self.is_playing = False; self.thread = None
    def load_file(self):
        f = filedialog.askopenfilename(filetypes=[("MIDI Files", "*.mid"), ("All Files", "*.*")])
        if f: self.filename = f; short_name = os.path.basename(f); gui.update_filename(f"File: {short_name}"); print(f"Loaded: {f}")
    def play(self):
        if not self.filename or self.is_playing: return
        self.is_playing = True; self.thread = threading.Thread(target=self._play_thread, daemon=True); self.thread.start()
    def stop(self):
        self.is_playing = False; process_midi_event(0xB0, 120, 0)
        if params.engine_mode == "DIGITAL":
            for i in range(128): fluid_engine.note_off(i)
    def _play_thread(self):
        try:
            mid = mido.MidiFile(self.filename, clip=True); print(f"Start playing: {self.filename}")
            for msg in mid.play():
                if not self.is_playing or not is_running: break
                if msg.type == 'note_on': process_midi_event(0x90, msg.note, msg.velocity)
                elif msg.type == 'note_off': process_midi_event(0x80, msg.note, msg.velocity)
                elif msg.type == 'control_change': process_midi_event(0xB0, msg.control, msg.value)
                elif msg.type == 'program_change': process_midi_event(0xC0, msg.program, 0)
            self.is_playing = False; print("Finished.")
        except Exception as e: print(f"Error: {e}"); self.is_playing = False

midi_player = MidiPlayer()

def cleanup_and_exit():
    global is_running
    print("\nShutting down...")
    is_running = False
    midi_player.stop()
    if 'stream' in globals(): stream.stop(); stream.close()
    if 'mi' in globals(): mi.close_port()
    if gui.root: gui.root.destroy()
    print("Bye!")
    sys.exit()

def create_panel():
    root=tk.Tk(); gui.root=root
    root.title("Synth v43 (MIDI Monitor)"); root.geometry("640x820"); style=ttk.Style(); style.theme_use('clam')
    root.protocol("WM_DELETE_WINDOW", cleanup_and_exit)
    tk.Label(root, text=f"Audio: {AUDIO_DEVICE_NAME} (ID:{AUDIO_DEVICE_ID}) | MIDI: {MIDI_PORT_NAME}", bg="#333333", fg="white", font=("Arial", 9)).pack(fill=tk.X, side=tk.TOP)

    gui.disp_a=tk.DoubleVar(value=params.vcf_attack); gui.disp_d=tk.DoubleVar(value=params.vcf_decay)
    gui.disp_s=tk.DoubleVar(value=params.vcf_sustain); gui.disp_r=tk.DoubleVar(value=params.vcf_release)
    gui.var_vol=tk.DoubleVar(value=params.master_gain); gui.var_cut=tk.DoubleVar(value=params.cutoff_base)
    gui.var_res=tk.DoubleVar(value=params.resonance); gui.var_dig_flt = tk.BooleanVar(value=params.digital_filter_on)

    top=tk.Frame(root,bg="black",pady=5); top.pack(fill=tk.X)
    cv=tk.Canvas(top,width=30,height=30,bg="black",highlightthickness=0); cv.pack(side=tk.LEFT,padx=10)
    gui.gate_lamp=cv; cv.create_oval(5,5,25,25,fill="#440000",outline="gray",tags="lamp")
    gui.btn_engine=tk.Button(top, text="MODE: ANALOG (Scipy)", bg="#EEAA44", fg="white", font=("Arial",12,"bold"), command=gui.toggle_engine); gui.btn_engine.pack(side=tk.LEFT, padx=100)
    tk.Button(top, text="QUIT", bg="#FF4444", fg="white", font=("Arial",10,"bold"), command=cleanup_and_exit).pack(side=tk.RIGHT, padx=10)

    main=ttk.Frame(root,padding=5); main.pack(fill=tk.BOTH,expand=True)
    l=ttk.LabelFrame(main,text="Global Filter & Scope",padding=5); l.pack(side=tk.LEFT,fill=tk.BOTH,expand=True)
    sc_frame = tk.Frame(l, bg="black", bd=2, relief=tk.SUNKEN); sc_frame.pack(pady=5)
    gui.scope_canvas=tk.Canvas(sc_frame,width=250,height=100,bg="black",highlightthickness=0); gui.scope_canvas.pack()
    gui.lbl_wave = tk.Label(l, text="WAVE: SAWTOOTH", bg="#222222", fg="cyan", font=("Arial", 10, "bold")); gui.lbl_wave.pack(fill=tk.X)
    gui.btn_scope = tk.Button(l, text="SCOPE: OFF (Stable)", bg="#444444", fg="#AAAAAA", font=("Arial", 8), command=gui.toggle_scope); gui.btn_scope.pack(fill=tk.X, pady=2)
    gui.btn_filter=tk.Button(l, text="FILTER: LPF", bg="#4444AA", fg="white", font=("Arial",10,"bold"), command=gui.toggle_filter); gui.btn_filter.pack(fill=tk.X, pady=5)

    def ms(p,l,v,mx,at):
        f=ttk.Frame(p); f.pack(fill=tk.X); ttk.Label(f,text=l,width=5).pack(side=tk.LEFT)
        ttk.Scale(f,from_=50 if at=="cutoff_base" else 0, to=mx,variable=v,command=lambda x: setattr(params,at,float(x))).pack(side=tk.LEFT,fill=tk.X,expand=True)
    ms(l,"Cut",gui.var_cut,5000,"cutoff_base"); ms(l,"Res",gui.var_res,0.9,"resonance")

    r=ttk.LabelFrame(main,text="Digital / Player",padding=5); r.pack(side=tk.RIGHT,fill=tk.BOTH,expand=True)
    gui.instr_label=tk.Label(r,text="0: Grand Piano", font=("Arial",14,"bold"), fg="cyan", bg="#222222", width=20); gui.instr_label.pack(pady=5)
    instr_btns = ttk.Frame(r); instr_btns.pack(fill=tk.X, pady=2)
    tk.Button(instr_btns, text="< Prev", width=10, command=lambda: gui.change_instr_relative(-1)).pack(side=tk.LEFT, padx=5, expand=True)
    tk.Button(instr_btns, text="Next >", width=10, command=lambda: gui.change_instr_relative(1)).pack(side=tk.LEFT, padx=5, expand=True)
    fk = ttk.Frame(r); fk.pack(fill=tk.X, pady=5)
    cb = ttk.Checkbutton(fk, text="Filter Enable (Digital Mode)", variable=gui.var_dig_flt, command=gui.set_digital_filter); cb.pack(anchor=tk.CENTER)
    mp = ttk.LabelFrame(r, text="MIDI File Player", padding=5); mp.pack(fill=tk.X, pady=5)
    gui.lbl_filename = tk.Label(mp, text="No File Selected", font=("Arial", 8)); gui.lbl_filename.pack(fill=tk.X)
    btn_box = ttk.Frame(mp); btn_box.pack(fill=tk.X)
    tk.Button(btn_box, text="Load", command=midi_player.load_file, bg="#DDDDDD").pack(side=tk.LEFT, fill=tk.X, expand=True)
    tk.Button(btn_box, text="Play", command=midi_player.play, bg="#AAFFAA").pack(side=tk.LEFT, fill=tk.X, expand=True)
    tk.Button(btn_box, text="Stop", command=midi_player.stop, bg="#FFAAAA").pack(side=tk.LEFT, fill=tk.X, expand=True)
    ttk.Label(r,text="Filter ADSR").pack(pady=2)
    def me(l,v,c):
        f=ttk.Frame(r); f.pack(fill=tk.X); ttk.Label(f,text=l,width=3).pack(side=tk.LEFT)
        ttk.Scale(f,from_=0.01,to=2.0,variable=v,command=lambda x: setattr(params,f"vcf_{c}",float(x))).pack(side=tk.LEFT,fill=tk.X,expand=True)
    me("A",gui.disp_a,"attack"); me("D",gui.disp_d,"decay"); me("S",gui.disp_s,"sustain"); me("R",gui.disp_r,"release")
    ttk.Label(r,text="Vol (K8)").pack(pady=2)
    ttk.Scale(r,from_=0,to=1,variable=gui.var_vol,command=lambda x: handle_cc(8,float(x)*127)).pack(fill=tk.X)

    # ★MIDI Monitor Frame
    log_f = ttk.LabelFrame(root, text="MIDI Monitor (Recent 50)", padding=5)
    log_f.pack(fill=tk.BOTH, expand=True, padx=5, pady=5)
    gui.log_text = tk.Text(log_f, height=6, state='disabled', bg="black", fg="#00FF00", font=("Consolas", 9))
    gui.log_text.pack(side=tk.LEFT, fill=tk.BOTH, expand=True)
    sb = ttk.Scrollbar(log_f, orient="vertical", command=gui.log_text.yview)
    sb.pack(side=tk.RIGHT, fill=tk.Y)
    gui.log_text.config(yscrollcommand=sb.set)

    gui.root.after(100, gui_update_loop)
    return root

if __name__ == "__main__":
    fluid_engine.init_synth()
    mi=rtmidi.MidiIn()
    ports = mi.get_ports(); found_idx = -1
    for i, p_name in enumerate(ports):
        if "Midi Through" not in p_name: found_idx = i; break
    if found_idx != -1: mi.open_port(found_idx); print(f"MIDI Connected: {ports[found_idx]}")
    else: mi.open_virtual_port("PySynth"); print("MIDI: Virtual Port")
    threading.Thread(target=midi_loop,args=(mi,),daemon=True).start()

    print("\n--- Audio Hardware Scan ---")
    devs = sd.query_devices()
    target_id = None

    for i, d in enumerate(devs):
        if d['max_output_channels'] > 0 and TARGET_DEVICE_KEYWORD in d['name']:
            target_id = i
            AUDIO_DEVICE_NAME = d['name']
            AUDIO_DEVICE_ID = i
            print(f"--> FOUND TARGET: {d['name']} (ID: {i})")
            break

    if target_id is None:
        target_id = sd.default.device[1]
        AUDIO_DEVICE_NAME = "Default (Target not found)"
        print("--> Using Default Device")

    stream = sd.OutputStream(
        device=target_id,
        samplerate=SAMPLE_RATE,
        channels=CHANNELS,
        dtype=DTYPE,
        blocksize=BLOCK_SIZE,
        latency='high',
        callback=sd_callback
    )

    stream.start()
    print(f"Stream Started: {SAMPLE_RATE}Hz / {BLOCK_SIZE} frames")

    root=create_panel()
    try: root.mainloop()
    except: pass

# コード名: py_synth_v60_arpeggiator
# バージョン: 60.0 (Chord Arpeggiator)
# Description: Page 8にアルペジエーター機能(BPM/Pattern)を追加。

import os
os.environ['OMP_NUM_THREADS'] = '1'

import sys
import time
import threading
import math
import subprocess
import random
import numpy as np
import rtmidi
import fluidsynth
import digitalio
import board
import mido

from PIL import Image, ImageDraw, ImageFont
from adafruit_rgb_display import st7789

# --- ライブラリチェック ---
try:
    import sounddevice as sd
except ImportError:
    sys.exit("Error: pip install sounddevice")
try:
    from scipy.signal import lfilter
except ImportError:
    sys.exit("Error: pip install scipy")

# --- 設定 ---
TARGET_DEVICE_KEYWORD = "USB"
SAMPLE_RATE = 48000
BLOCK_SIZE = 256
CHANNELS = 2
DTYPE = 'int16'
MASTER_GAIN_DEFAULT = 0.5
SF2_PATH = "/usr/share/sounds/sf2/FluidR3_GM.sf2"
MIDI_DIR = "./midi"

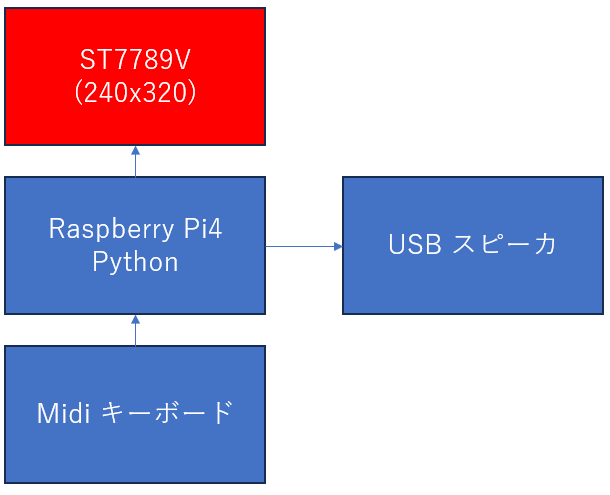

# LCD Pins
CS_PIN = board.D8
DC_PIN = board.D27
RST_PIN = board.D17
BAUDRATE = 24000000

is_running = True
last_audio_data = np.zeros(BLOCK_SIZE, dtype=np.int16)
midi_logs = []
last_drum_name = ""

# --- コード定義 ---
CHORD_TYPES = [
    {"name": "OFF",      "offsets": [0]},
    {"name": "Major",    "offsets": [0, 4, 7]},
    {"name": "Minor",    "offsets": [0, 3, 7]},
    {"name": "Maj7",     "offsets": [0, 4, 7, 11]},
    {"name": "Min7",     "offsets": [0, 3, 7, 10]},
    {"name": "Sus4",     "offsets": [0, 5, 7]},
    {"name": "5th(Pwr)", "offsets": [0, 7]},
    {"name": "Octave",   "offsets": [0, 12]}
]

# --- アルペジオパターン ---
ARP_PATTERNS = ["OFF", "UP", "DOWN", "RAND"]

# --- GM楽器名 ---
GM_INSTRUMENTS = [
    "Grand Piano", "Bright Piano", "E.Grand Piano", "Honky-tonk", "E.Piano 1", "E.Piano 2", "Harpsichord", "Clavinet",
    "Celesta", "Glockenspiel", "Music Box", "Vibraphone", "Marimba", "Xylophone", "Tubular Bells", "Dulcimer",
    "Drawbar Organ", "Percussive Organ", "Rock Organ", "Church Organ", "Reed Organ", "Accordion", "Harmonica", "Tango Accordion",
    "Guit(Nylon)", "Guit(Steel)", "Guit(Jazz)", "Guit(Clean)", "Guit(Muted)", "Guit(Overdrive)", "Guit(Distortion)", "Guit(Harmonics)",
    "Acoustic Bass", "E.Bass(Finger)", "E.Bass(Pick)", "Fretless Bass", "Slap Bass 1", "Slap Bass 2", "Synth Bass 1", "Synth Bass 2",
    "Violin", "Viola", "Cello", "Contrabass", "Tremolo Strings", "Pizzicato Strings", "Orchestral Harp", "Timpani",
    "Strings 1", "Strings 2", "SynthStrings 1", "SynthStrings 2", "Choir Aahs", "Voice Oohs", "Synth Voice", "Orchestra Hit",
    "Trumpet", "Trombone", "Tuba", "Muted Trumpet", "French Horn", "Brass Section", "Synth Brass 1", "Synth Brass 2",
    "Soprano Sax", "Alto Sax", "Tenor Sax", "Baritone Sax", "Oboe", "English Horn", "Bassoon", "Clarinet",
    "Piccolo", "Flute", "Recorder", "Pan Flute", "Blown Bottle", "Shakuhachi", "Whistle", "Ocarina",
    "Lead 1 (square)", "Lead 2 (saw)", "Lead 3 (calliope)", "Lead 4 (chiff)", "Lead 5 (charang)", "Lead 6 (voice)", "Lead 7 (fifths)", "Lead 8 (bass+lead)",
    "Pad 1 (new age)", "Pad 2 (warm)", "Pad 3 (polysynth)", "Pad 4 (choir)", "Pad 5 (bowed)", "Pad 6 (metallic)", "Pad 7 (halo)", "Pad 8 (sweep)",
    "FX 1 (rain)", "FX 2 (soundtrack)", "FX 3 (crystal)", "FX 4 (atmosphere)", "FX 5 (brightness)", "FX 6 (goblins)", "FX 7 (echoes)", "FX 8 (sci-fi)",
    "Sitar", "Banjo", "Shamisen", "Koto", "Kalimba", "Bag pipe", "Fiddle", "Shanai",
    "Tinkle Bell", "Agogo", "Steel Drums", "Woodblock", "Taiko Drum", "Melodic Tom", "Synth Drum", "Reverse Cymbal",
    "Guit Fret Noise", "Breath Noise", "Seashore", "Bird Tweet", "Telephone Ring", "Helicopter", "Applause", "Gunshot"
]

# --- ドラムマップ ---
DRUM_MAP = {
    36: "Bass Drum 1", 37: "Side Stick", 38: "Acoustic Snare", 39: "Hand Clap",
    40: "Electric Snare", 41: "Low Floor Tom", 42: "Closed Hi-Hat", 43: "High Floor Tom",
    44: "Pedal Hi-Hat", 45: "Low Tom", 46: "Open Hi-Hat", 47: "Low-Mid Tom",
    48: "Hi-Mid Tom", 49: "Crash Cymbal 1", 50: "High Tom", 51: "Ride Cymbal 1"
}

class SynthParams:
    def __init__(self):
        self.engine_mode = "ANALOG"
        self.master_gain = MASTER_GAIN_DEFAULT
        self.waveform = "sawtooth"
        self.lfo_rate = 5.0; self.lfo_depth = 0.0
        self.filter_mode = "LPF"; self.cutoff_base = 1000.0; self.resonance = 0.5; self.vcf_env_amt = 4000.0
        self.vcf_attack = 0.1; self.vcf_decay = 0.3; self.vcf_sustain = 0.4; self.vcf_release = 0.5
        self.amp_attack = 0.05; self.amp_decay = 0.2; self.amp_sustain = 0.6; self.amp_release = 0.5
        self.sf_program = 0; self.sf_vol = 1.0
        self.reverb_send = 40
        self.chorus_send = 0

        # Chord & Arp
        self.chord_type_idx = 0
        self.arp_pattern_idx = 0 # 0=OFF
        self.arp_bpm = 120.0

        self.page_index = 0
        self.gate_status = False

params = SynthParams()

# --- Helper Functions for System Info ---
def get_ip_address():
    try:
        cmd = "hostname -I | cut -d' ' -f1"
        return subprocess.check_output(cmd, shell=True).decode("utf-8").strip()
    except: return "Unknown"

def get_cpu_temp():
    try:
        with open("/sys/class/thermal/thermal_zone0/temp", "r") as f:
            temp = float(f.read()) / 1000.0
        return temp
    except: return 0.0

def get_disk_usage():
    try:
        cmd = "df -h / | awk 'NR==2{print $3 \"/\" $2 \" (\" $5 \")\"}'"
        return subprocess.check_output(cmd, shell=True).decode("utf-8").strip()
    except: return "?"

def get_ram_usage():
    try:
        cmd = "free -m | awk 'NR==2{printf \"%s/%sMB (%.0f%%)\", $3,$2,$3*100/$2 }'"
        return subprocess.check_output(cmd, shell=True).decode("utf-8").strip()
    except: return "?"

# --- MIDI Player Class ---
class MidiPlayer:
    def __init__(self):
        self.files = []
        self.selected_idx = 0
        self.is_playing = False
        self.stop_signal = False
        self.thread = None
        self.scan_files()

    def scan_files(self):
        self.files = []
        if os.path.exists(MIDI_DIR):
            for f in os.listdir(MIDI_DIR):
                if f.lower().endswith(".mid"):
                    self.files.append(f)
            self.files.sort()
        else:
            try:
                os.makedirs(MIDI_DIR)
                print(f"Created {MIDI_DIR}")
            except: pass
        if not self.files:
            self.files = ["(No Files)"]

    def select_file(self, norm_val):
        count = len(self.files)
        self.selected_idx = min(count - 1, int(norm_val * count))

    def play(self):
        if self.is_playing: return
        if self.files[0] == "(No Files)": return
        self.stop_signal = False
        self.is_playing = True
        self.thread = threading.Thread(target=self._play_thread, daemon=True)
        self.thread.start()

    def stop(self):
        if self.is_playing:
            self.stop_signal = True
            for ch in range(16):
                process_midi_event(0xB0 + ch, 120, 0)
                process_midi_event(0xB0 + ch, 123, 0)

    def _play_thread(self):
        filename = os.path.join(MIDI_DIR, self.files[self.selected_idx])
        try:
            mid = mido.MidiFile(filename)
            print(f"Playing: {filename}")
            if params.engine_mode == "ANALOG":
                params.engine_mode = "DIGITAL1"
            for msg in mid.play():
                if self.stop_signal or not is_running: break
                if msg.type == 'note_on': process_midi_event(0x90 | msg.channel, msg.note, msg.velocity)
                elif msg.type == 'note_off': process_midi_event(0x80 | msg.channel, msg.note, msg.velocity)
                elif msg.type == 'control_change': process_midi_event(0xB0 | msg.channel, msg.control, msg.value)
                elif msg.type == 'program_change': process_midi_event(0xC0 | msg.channel, msg.program, 0)
            print("Playback Finished.")
        except Exception as e:
            print(f"MIDI Error: {e}")
        self.is_playing = False
        self.stop_signal = False

midi_player = MidiPlayer()

class FluidManager:
    def __init__(self):
        self.fs = None; self.ready = False
    def init_synth(self):
        try:
            self.fs = fluidsynth.Synth()
            self.fs.setting('synth.sample-rate', float(SAMPLE_RATE))
            self.fs.setting('synth.gain', 1.0)
            self.fs.setting('synth.polyphony', 64)
            self.fs.setting('synth.reverb.active', 'yes')
            self.fs.setting('synth.chorus.active', 'yes')

            sfid = self.fs.sfload(SF2_PATH)
            self.fs.program_select(0, sfid, 0, 0)
            res = self.fs.program_select(9, sfid, 128, 0)
            if res != 0: self.fs.program_select(9, sfid, 120, 0)
            self.fs.program_change(9, 0)

            self.fs.cc(0, 91, params.reverb_send)
            self.fs.cc(0, 93, params.chorus_send)

            self.ready = True
            print("FluidSynth Ready (Reverb/Chorus ON).")
        except Exception as e:
            print(f"FluidSynth Error: {e}"); self.ready = False

    def get_samples(self, n):
        if not self.ready: return np.zeros(n * 2, dtype=np.int16)
        return np.array(self.fs.get_samples(n), dtype=np.int16)

    def note_on(self, ch, n, v):
        if self.ready: self.fs.noteon(ch, n, v)
    def note_off(self, ch, n):
        if self.ready: self.fs.noteoff(ch, n)
    def change_program(self, ch, p):
        if self.ready: self.fs.program_change(ch, int(p))

    def send_cc(self, ch, cc, val):
        if self.ready: self.fs.cc(ch, cc, int(val))

fluid_engine = FluidManager()

# --- Arpeggiator ---
class Arpeggiator:
    def __init__(self):
        self.current_notes = [] # [(note, vel)]
        self.playing_note = None
        self.step_idx = 0
        self.last_step_time = 0
        threading.Thread(target=self._loop, daemon=True).start()

    def set_notes(self, notes_with_vel):
        # notes_with_vel: list of (n, v)
        self.current_notes = notes_with_vel
        self.current_notes.sort(key=lambda x: x[0]) # Default sort UP

    def _loop(self):
        while is_running:
            mode = ARP_PATTERNS[params.arp_pattern_idx]

            # ARP OFF: Do nothing (Logic handled in process_midi)
            if mode == "OFF" or not self.current_notes:
                if self.playing_note is not None:
                    fluid_engine.note_off(0, self.playing_note)
                    self.playing_note = None
                time.sleep(0.01)
                continue

            # ARP ON
            step_duration = 60.0 / params.arp_bpm / 2.0 # 8th notes
            now = time.time()

            if now - self.last_step_time >= step_duration:
                # Stop prev
                if self.playing_note is not None:
                    fluid_engine.note_off(0, self.playing_note)

                # Select Next Note
                notes = self.current_notes[:] # Copy
                if not notes: continue

                if mode == "UP":
                    pass # Sorted
                elif mode == "DOWN":
                    notes.reverse()
                elif mode == "RAND":
                    random.shuffle(notes)

                # Safe idx
                self.step_idx %= len(notes)
                n, v = notes[self.step_idx]

                fluid_engine.note_on(0, n, v)
                self.playing_note = n

                if mode == "RAND":
                    self.step_idx = random.randint(0, len(notes)-1)
                else:
                    self.step_idx += 1

                self.last_step_time = now

            time.sleep(0.005)

arp = Arpeggiator()

def design_biquad(mode, fc, q, fs):
    w0=2*math.pi*fc/fs; alpha=math.sin(w0)/(2*q); c=math.cos(w0); a0=1+alpha
    if mode=="LPF": b=[(1-c)/2, 1-c, (1-c)/2]
    elif mode=="HPF": b=[(1+c)/2, -(1+c), (1+c)/2]
    elif mode=="BPF": b=[alpha, 0, -alpha]
    else: return [1,0,0],[1,0,0]
    return np.array(b)/a0, np.array([1+alpha,-2*c,1-alpha])/a0

class ADSREnvelope:
    def __init__(self, is_amp=True):
        self.state='IDLE'; self.level=0.0; self.is_amp=is_amp
    def trigger(self): self.state='ATTACK'
    def release(self): self.state='RELEASE'
    def get_val(self):
        if self.is_amp: a,d,s,r = params.amp_attack,params.amp_decay,params.amp_sustain,params.amp_release
        else: a,d,s,r = params.vcf_attack,params.vcf_decay,params.vcf_sustain,params.vcf_release
        step = float(BLOCK_SIZE)/SAMPLE_RATE
        if self.state=='ATTACK':
            self.level+=step/max(a,0.001);
            if self.level>=1.0: self.level,self.state=1.0,'DECAY'
        elif self.state=='DECAY':
            self.level-=(step/max(d,0.001))*(1.0-s);
            if self.level<=s: self.level,self.state=s,'SUSTAIN'
        elif self.state=='SUSTAIN': self.level=s
        elif self.state=='RELEASE':
            self.level-=step/max(r,0.001);
            if self.level<=0.0: self.level,self.state=0.0,'IDLE'
        return self.level

class StereoMasterFilter:
    def __init__(self): self.zi = np.zeros((2, 2))
    def process(self, sig_stereo_int16, cut, res):
        sig_float = sig_stereo_int16.astype(np.float32) / 32768.0
        fc = max(50.0, min(cut, SAMPLE_RATE * 0.45)); q = 0.7 + (res * 9.0)
        b, a = design_biquad(params.filter_mode, fc, q, SAMPLE_RATE)
        sig_reshaped = sig_float.reshape(-1, 2)
        out_reshaped, self.zi = lfilter(b, a, sig_reshaped, axis=0, zi=self.zi)
        return np.clip(out_reshaped.flatten() * 32768.0, -32768, 32767).astype(np.int16)

class Oscillator:
    def __init__(self): self.p=0.0; self.f=0.0
    def set_f(self,f): self.f=f
    def get(self,n,lfo):
        if self.f==0: return np.zeros(n)
        mf=self.f+(lfo*params.lfo_depth*10.0)
        ph=self.p+np.cumsum(np.full(n,1.0))*(mf/SAMPLE_RATE)
        self.p=ph[-1]%1.0; ph%=1.0
        w=params.waveform
        if w=='sawtooth': return 2.0*(ph-0.5)
        elif w=='square': return np.sign(np.sin(2*np.pi*ph))
        elif w=='sine': return np.sin(2*np.pi*ph)
        return 2.0*np.abs(2.0*(ph-0.5))-1.0

class LFO:
    def __init__(self): self.p=0.0
    def get(self,n):
        t=(np.arange(n)+self.p)/SAMPLE_RATE; self.p+=n
        if self.p>SAMPLE_RATE: self.p-=SAMPLE_RATE
        return np.sin(2*np.pi*params.lfo_rate*t)

vco=Oscillator(); lfo=LFO(); amp=ADSREnvelope(True); vcf=ADSREnvelope(False)
master_filter = StereoMasterFilter()
active_note=None

# --- Audio Callback ---
def sd_callback(outdata, frames, time_info, status):
    global last_audio_data
    if not is_running: outdata.fill(0); return

    if params.engine_mode == "ANALOG":
        raw = vco.get(frames, np.mean(lfo.get(frames)))
        an_mono = raw * amp.get_val()
        an_stereo_int16 = (np.repeat(an_mono, 2) * 0.8 * 32767).astype(np.int16)
    else:
        an_stereo_int16 = np.zeros(frames * 2, dtype=np.int16)

    dig_stereo_int16 = fluid_engine.get_samples(frames)
    mixed_int16 = np.clip(an_stereo_int16.astype(np.int32) + dig_stereo_int16.astype(np.int32), -32768, 32767).astype(np.int16)

    apply_filter = False
    if params.engine_mode == "ANALOG": apply_filter = True
    elif params.engine_mode == "DIGITAL1": apply_filter = True

    if apply_filter:
        v_env = vcf.get_val()
        cut = params.cutoff_base + (params.vcf_env_amt * v_env)
        final_out = master_filter.process(mixed_int16, cut, params.resonance)
    else:
        vcf.get_val()
        final_out = mixed_int16

    final_out = (final_out * params.master_gain).astype(np.int16)

    if len(last_audio_data) != len(final_out):
        last_audio_data = np.zeros_like(final_out)
    last_audio_data[:] = final_out

    outdata[:] = final_out.reshape(-1, 2)

# --- Display Manager ---
class DisplayManager:
    def __init__(self):
        spi = board.SPI()
        cs = digitalio.DigitalInOut(CS_PIN)
        dc = digitalio.DigitalInOut(DC_PIN)
        rst = digitalio.DigitalInOut(RST_PIN)
        self.disp = st7789.ST7789(
            spi, cs=cs, dc=dc, rst=rst,
            baudrate=BAUDRATE,
            width=240, height=320,
            x_offset=0, y_offset=0,
            rotation=0
        )
        self.width = 320
        self.height = 240
        self.image = Image.new("RGB", (self.width, self.height))
        self.draw = ImageDraw.Draw(self.image)
        try:
            self.font_s = ImageFont.truetype("/usr/share/fonts/truetype/dejavu/DejaVuSans.ttf", 14)
            self.font_m = ImageFont.truetype("/usr/share/fonts/truetype/dejavu/DejaVuSans.ttf", 18)
            self.font_l = ImageFont.truetype("/usr/share/fonts/truetype/dejavu/DejaVuSans-Bold.ttf", 24)
        except:
            self.font_s = ImageFont.load_default()
            self.font_m = ImageFont.load_default()
            self.font_l = ImageFont.load_default()

        self.last_sys_update = 0
        self.cache_ip = ""; self.cache_disk = ""; self.cache_ram = ""

    def update(self):
        self.draw.rectangle((0, 0, self.width, self.height), outline=0, fill=0)

        gate_color = (255, 0, 0) if params.gate_status else (50, 0, 0)
        self.draw.ellipse((5, 5, 20, 20), fill=gate_color)
        page_names = ["MAIN", "LFO", "ADSR/FLT", "VISUAL", "LOG", "PLAYER", "SYSTEM", "EFFECT", "CHORD"]
        title = f"{page_names[params.page_index]} (PG:{params.page_index+1}/9)"
        self.draw.text((30, 5), title, font=self.font_m, fill=(200, 200, 200))
        self.draw.line((0, 30, self.width, 30), fill=(100, 100, 100))

        if params.page_index == 0: self._draw_page_main()
        elif params.page_index == 1: self._draw_page_lfo()
        elif params.page_index == 2: self._draw_page_adsr()
        elif params.page_index == 3: self._draw_page_scope()
        elif params.page_index == 4: self._draw_page_log()
        elif params.page_index == 5: self._draw_page_player()
        elif params.page_index == 6: self._draw_page_system()
        elif params.page_index == 7: self._draw_page_effect()
        elif params.page_index == 8: self._draw_page_chord()

        self.disp.image(self.image.rotate(90, expand=True))

    def _draw_page_main(self):
        if params.engine_mode == "ANALOG":
            mode_color = (255, 165, 0)
            txt = f"WAVE: {params.waveform.upper()}"
        elif params.engine_mode == "DIGITAL1":
            mode_color = (0, 191, 255)
            p = params.sf_program
            name = GM_INSTRUMENTS[p] if p < len(GM_INSTRUMENTS) else "?"
            txt = f"PROG {p}: {name}"
        elif params.engine_mode == "DIGITAL2":
            mode_color = (100, 255, 100)
            p = params.sf_program
            name = GM_INSTRUMENTS[p] if p < len(GM_INSTRUMENTS) else "?"
            txt = f"PROG {p}: {name}"
        else:
            mode_color = (255, 100, 255)
            p = params.sf_program
            name = GM_INSTRUMENTS[p] if p < len(GM_INSTRUMENTS) else "?"
            txt = f"PROG {p}: {name}"
        self.draw.text((10, 40), f"MODE: {params.engine_mode}", font=self.font_l, fill=mode_color)
        self.draw.text((10, 80), txt, font=self.font_m, fill=(255, 255, 255))
        if "DIGITAL" in params.engine_mode:
            self.draw.text((10, 110), "Use K3 to Select Prog", font=self.font_s, fill=(100, 100, 255))
        if params.engine_mode == "DIGITAL2":
             self.draw.text((180, 45), "(Filt OFF)", font=self.font_s, fill=(100, 255, 100))
        elif params.engine_mode == "DIGITAL3":
             self.draw.text((180, 45), "(Fixed Vel)", font=self.font_s, fill=(255, 100, 255))
        if last_drum_name:
            self.draw.text((10, 135), f"Drum: {last_drum_name}", font=self.font_m, fill=(255, 100, 100))
        vol_pct = int(params.master_gain * 100)
        self.draw.text((10, 160), f"VOL: {vol_pct}%", font=self.font_m, fill=(0, 255, 0))
        bar_w = 180
        self.draw.rectangle((10, 185, 10+bar_w, 200), outline=(0, 255, 0), fill=None)
        self.draw.rectangle((10, 185, 10+int(bar_w*params.master_gain), 200), fill=(0, 255, 0))

    def _draw_page_lfo(self):
        self.draw.text((10, 40), f"RATE:  {params.lfo_rate:.1f} Hz", font=self.font_l, fill=(255, 255, 0))
        self.draw.text((10, 70), f"DEPTH: {int(params.lfo_depth*100)} %", font=self.font_l, fill=(0, 255, 255))
        self.draw.text((10, 100), "Knob K1: Rate", font=self.font_s, fill=(200, 200, 200))
        self.draw.text((10, 120), "Knob K2: Depth", font=self.font_s, fill=(200, 200, 200))
        cx, cy = 160, 180
        w, h = 280, 60
        t = time.time()
        phase = t * params.lfo_rate * 2.0 * math.pi
        points = []
        for i in range(w):
            x = i
            amp = (params.lfo_depth * 25.0) + 2.0
            y = math.sin(phase + (i * 0.1)) * amp
            points.append((20 + x, cy + y))
        if len(points) > 1:
            self.draw.line(points, fill=(255, 0, 255), width=2)
            self.draw.rectangle((20, cy-30, 20+w, cy+30), outline=(50, 50, 50))

    def _draw_page_adsr(self):
        self.draw.text((10, 40), f"A:{params.vcf_attack:.2f}  D:{params.vcf_decay:.2f}", font=self.font_m, fill=(255, 255, 255))
        self.draw.text((10, 65), f"S:{params.vcf_sustain:.2f}  R:{params.vcf_release:.2f}", font=self.font_m, fill=(255, 255, 255))
        self.draw.text((10, 90), f"CUT: {int(params.cutoff_base)}", font=self.font_m, fill=(255, 255, 0))
        self.draw.text((160, 90), f"RES: {params.resonance:.1f}", font=self.font_m, fill=(255, 0, 255))
        self.draw.text((10, 115), "K1:A K2:D K3:S K4:R", font=self.font_s, fill=(150, 150, 150))
        self.draw.text((10, 130), "K5:Cut K7:Res", font=self.font_s, fill=(150, 150, 150))
        gx, gy, gw, gh = 20, 220, 280, 80
        total_t = params.vcf_attack + params.vcf_decay + params.vcf_release + 0.5
        scale_x = gw / max(total_t, 1.0)
        x0, y0 = gx, gy
        xa = x0 + (params.vcf_attack * scale_x)
        ya = gy - gh
        xd = xa + (params.vcf_decay * scale_x)
        ys = gy - (params.vcf_sustain * gh)
        hold_w = 0.5 * scale_x
        xr_start = xd + hold_w
        xr_end = xr_start + (params.vcf_release * scale_x)
        pts = [(x0, y0), (xa, ya), (xd, ys), (xr_start, ys), (xr_end, y0)]
        self.draw.line(pts, fill=(0, 255, 0), width=3)
        self.draw.line((gx, gy, gx+gw, gy), fill=(100, 100, 100))

    def _draw_page_scope(self):
        step = 4
        scale_y = 60.0
        mid_y = 80
        points = []
        data = last_audio_data[::2]
        for x in range(0, self.width, step):
            idx = int((x / self.width) * len(data))
            if idx < len(data):
                val = data[idx] / 32768.0
                y = mid_y - (val * scale_y)
                points.append((x, y))
        if len(points) > 1:
            self.draw.line(points, fill=(0, 255, 0), width=2)

        self.draw.text((5, 140), "Waveform (Up) / Spectrum (Down)", font=self.font_s, fill=(150, 150, 150))

        # FFT Spectrum
        try:
            fft_data = np.abs(np.fft.rfft(data))
            fft_len = len(fft_data)
            display_len = min(fft_len, 64)
            bar_width = self.width / display_len
            bottom_y = 230
            max_height = 80.0

            for i in range(display_len):
                mag = fft_data[i]
                if i == 0: mag = 0
                h = min(max_height, (mag / 400000.0) * max_height)

                x1 = i * bar_width
                y1 = bottom_y - h
                x2 = x1 + bar_width - 1
                y2 = bottom_y
                r = int(255 * (i / display_len))
                b = 255 - r
                self.draw.rectangle((x1, y1, x2, y2), fill=(r, 100, b))
        except: pass

    def _draw_page_log(self):
        y = 40
        recent = midi_logs[-8:]
        for line in recent:
            self.draw.text((5, y), line, font=self.font_s, fill=(0, 255, 255))
            y += 20

    def _draw_page_player(self):
        self.draw.text((10, 40), "MIDI File Player", font=self.font_l, fill=(0, 255, 255))
        status_txt = "PLAYING >>" if midi_player.is_playing else "STOPPED ||"
        status_col = (0, 255, 0) if midi_player.is_playing else (255, 100, 100)
        self.draw.text((10, 70), status_txt, font=self.font_l, fill=status_col)
        self.draw.text((10, 110), "K1: Select File", font=self.font_s, fill=(200, 200, 200))
        self.draw.text((10, 130), "K2: Play(Right)/Stop(Left)", font=self.font_s, fill=(200, 200, 200))
        start_y = 160
        files = midi_player.files
        idx = midi_player.selected_idx
        if idx < 1: window_start = 0
        elif idx >= len(files) - 1: window_start = len(files) - 3
        else: window_start = idx - 1
        window_start = max(0, window_start)
        for i in range(window_start, min(len(files), window_start + 3)):
            fname = files[i]
            y = start_y + (i - window_start) * 25
            prefix = "> " if i == idx else "  "
            col = (255, 255, 0) if i == idx else (200, 200, 200)
            if len(fname) > 20: fname = fname[:18] + ".."
            self.draw.text((10, y), prefix + fname, font=self.font_m, fill=col)

    def _draw_page_system(self):
        now = time.time()
        if now - self.last_sys_update > 2.0:
            self.cache_ip = get_ip_address()
            self.cache_disk = get_disk_usage()
            self.cache_ram = get_ram_usage()
            self.last_sys_update = now
        self.draw.text((10, 40), "IP Address:", font=self.font_m, fill=(200, 200, 200))
        self.draw.text((10, 60), self.cache_ip, font=self.font_l, fill=(0, 255, 255))
        temp = get_cpu_temp()
        t_col = (0, 255, 0)
        if temp > 60: t_col = (255, 255, 0)
        if temp > 70: t_col = (255, 0, 0)
        self.draw.text((10, 90), f"CPU Temp: {temp:.1f} C", font=self.font_m, fill=t_col)
        self.draw.text((10, 120), "RAM Usage:", font=self.font_s, fill=(200, 200, 200))
        self.draw.text((10, 135), self.cache_ram, font=self.font_m, fill=(255, 255, 255))
        self.draw.text((10, 160), "Disk Usage:", font=self.font_s, fill=(200, 200, 200))
        self.draw.text((10, 175), self.cache_disk, font=self.font_m, fill=(255, 255, 255))

    def _draw_page_effect(self):
        self.draw.text((10, 40), "Global Effects", font=self.font_l, fill=(255, 0, 255))
        self.draw.text((10, 80), f"Reverb Send: {params.reverb_send}", font=self.font_m, fill=(255, 255, 0))
        bar_w = 200
        self.draw.rectangle((10, 105, 10+bar_w, 115), outline=(100, 100, 100))
        self.draw.rectangle((10, 105, 10+int(bar_w*(params.reverb_send/127.0)), 115), fill=(255, 255, 0))
        self.draw.text((10, 140), f"Chorus Send: {params.chorus_send}", font=self.font_m, fill=(0, 255, 255))
        self.draw.rectangle((10, 165, 10+bar_w, 175), outline=(100, 100, 100))
        self.draw.rectangle((10, 165, 10+int(bar_w*(params.chorus_send/127.0)), 175), fill=(0, 255, 255))
        self.draw.text((10, 200), "K1: Reverb  K2: Chorus", font=self.font_s, fill=(200, 200, 200))

    def _draw_page_chord(self):
        self.draw.text((10, 40), "Chord & Arpeggiator", font=self.font_l, fill=(255, 100, 100))

        # 1. Type
        idx = params.chord_type_idx
        c_name = CHORD_TYPES[idx]["name"]
        col = (100, 100, 100) if idx == 0 else (255, 255, 0)
        self.draw.text((10, 70), f"TYPE: {c_name}", font=self.font_m, fill=col)

        # 2. BPM
        self.draw.text((10, 100), f"BPM:  {int(params.arp_bpm)}", font=self.font_m, fill=(0, 255, 255))

        # 3. Pattern
        p_idx = params.arp_pattern_idx
        p_name = ARP_PATTERNS[p_idx]
        col_p = (100, 100, 100) if p_idx == 0 else (255, 0, 255)
        self.draw.text((10, 130), f"ARP:  {p_name}", font=self.font_m, fill=col_p)

        self.draw.text((10, 180), "K1/Pad:Type  K2:BPM", font=self.font_s, fill=(150, 150, 150))
        self.draw.text((10, 200), "K3:Arp Pattern", font=self.font_s, fill=(150, 150, 150))


disp_mgr = None

# --- MIDI Handling ---
def handle_cc(n, v):
    norm = v / 127.0
    # K6: Page Select (9 Pages now)
    if n == 6:
        pg = int(norm * 9)
        if pg > 8: pg = 8
        if params.page_index != pg: params.page_index = pg
        return
    if n == 8: params.master_gain = norm; return

    if params.page_index == 0:
        if n == 7:
            idx = min(6, int(norm * 7))
            if idx == 4: params.engine_mode = "DIGITAL1"
            elif idx == 5: params.engine_mode = "DIGITAL2"
            elif idx == 6: params.engine_mode = "DIGITAL3"
            else:
                params.engine_mode = "ANALOG"
                params.waveform = ["sawtooth", "square", "sine", "triangle"][idx]
            return
        if n == 3 and "DIGITAL" in params.engine_mode:
            prog = v
            if params.sf_program != prog:
                params.sf_program = prog
                fluid_engine.change_program(0, prog)
            return

    elif params.page_index == 1:
        if n == 1: params.lfo_rate = 0.1 + norm * 19.9
        elif n == 2: params.lfo_depth = norm
        return

    elif params.page_index == 2:
        if n == 1: params.vcf_attack = 0.01 + norm * 2
        elif n == 2: params.vcf_decay = 0.01 + norm * 2
        elif n == 3: params.vcf_sustain = norm
        elif n == 4: params.vcf_release = 0.01 + norm * 3
        elif n == 5: params.cutoff_base = 50.0 + norm * 5000.0
        elif n == 7: params.resonance = norm * 0.95
        return

    elif params.page_index == 5:
        if n == 1: midi_player.select_file(norm)
        elif n == 2:
            if v > 64: midi_player.play()
            else: midi_player.stop()

    elif params.page_index == 7: # EFFECT
        if n == 1:
            params.reverb_send = v
            fluid_engine.send_cc(0, 91, v)
        elif n == 2:
            params.chorus_send = v
            fluid_engine.send_cc(0, 93, v)
        elif n == 3:
            params.master_gain = norm

    elif params.page_index == 8: # CHORD & ARP
        if n == 1:
            idx = int(norm * len(CHORD_TYPES))
            if idx >= len(CHORD_TYPES): idx = len(CHORD_TYPES) - 1
            params.chord_type_idx = idx
        elif n == 2: # BPM
            params.arp_bpm = 60.0 + (norm * 240.0) # 60-300
        elif n == 3: # Pattern
            idx = int(norm * len(ARP_PATTERNS))
            if idx >= len(ARP_PATTERNS): idx = len(ARP_PATTERNS) - 1
            params.arp_pattern_idx = idx

def get_note_name(note_num):
    notes = ['C', 'C#', 'D', 'D#', 'E', 'F', 'F#', 'G', 'G#', 'A', 'A#', 'B']
    octave = note_num // 12 - 1
    name = notes[note_num % 12]
    return f"{name}{octave}"

def add_log(msg):
    midi_logs.append(msg)
    if len(midi_logs) > 20: midi_logs.pop(0)

def process_midi_event(status, data1, data2):
    global active_note, last_drum_name
    st = status & 0xF0
    ch = status & 0x0F
    log_str = ""

    # Note On
    if st == 0x90 and data2 > 0:
        n, v = data1, data2

        # Pad Chord Select (Only in Chord Page)
        if params.page_index == 8:
            if 36 <= n <= 43:
                idx = n - 36
                params.chord_type_idx = idx
                log_str = f"Chord Type: {CHORD_TYPES[idx]['name']}"
                add_log(log_str)
                return
            elif 44 <= n <= 51:
                idx = n - 44
                params.chord_type_idx = idx
                log_str = f"Chord Type: {CHORD_TYPES[idx]['name']}"
                add_log(log_str)
                return

        # Drum Check
        is_drum = (ch == 9) or (36 <= n <= 51 and ch == 0)
        if is_drum:
            target_ch = 9
            v_drum = max(v, 64)
            fluid_engine.note_on(target_ch, n, v_drum)
            d_name = DRUM_MAP.get(n, "Drum")
            last_drum_name = d_name
            log_str = f"Ch{ch} Pad: {d_name}"
            add_log(log_str)
            return

        # Normal Note
        if ch == 0 and params.engine_mode == "DIGITAL3": v = 102
        else: v = min(127, v + 40)

        log_str = f"Ch{ch} NoteOn: {n}"

        # Chord Mode Processing (Only for Ch0)
        if ch == 0:
            # 1. Generate Notes
            notes_to_play = []
            if params.chord_type_idx > 0:
                offsets = CHORD_TYPES[params.chord_type_idx]["offsets"]
                for off in offsets:
                    chord_n = n + off
                    if 0 <= chord_n <= 127: notes_to_play.append((chord_n, v))
            else:
                notes_to_play.append((n, v))

            # 2. Check ARP status
            is_arp = (params.arp_pattern_idx > 0)

            if is_arp:
                arp.set_notes(notes_to_play)
                # For Analog Scope visual only
                if params.engine_mode == "ANALOG": active_note=n; params.gate_status=True
                else: params.gate_status=True
            else:
                # Normal Chord Play
                for (cn, cv) in notes_to_play:
                    fluid_engine.note_on(ch, cn, cv)

                if params.engine_mode == "ANALOG":
                    vco.set_f(440.0*(2**((n-69)/12.0))); amp.trigger(); vcf.trigger(); active_note=n; params.gate_status=True
                else:
                    vcf.trigger(); params.gate_status=True

    # Note Off
    elif (st == 0x80) or (st == 0x90 and data2 == 0):
        n = data1
        if params.page_index == 8 and (36 <= n <= 51): return

        is_drum = (ch == 9) or (36 <= n <= 51 and ch == 0)
        if is_drum:
            fluid_engine.note_off(9, n)
            return
        log_str = f"Ch{ch} NoteOff: {n}"

        if ch == 0:
            is_arp = (params.arp_pattern_idx > 0)
            if is_arp:
                # Stop Arp
                arp.set_notes([])
                if params.engine_mode == "ANALOG":
                     if n == active_note: amp.release(); vcf.release(); active_note=None; params.gate_status=False
                else:
                    vcf.release(); params.gate_status=False
            else:
                # Normal Note Off
                if params.chord_type_idx > 0:
                    offsets = CHORD_TYPES[params.chord_type_idx]["offsets"]
                    for off in offsets:
                        chord_n = n + off
                        if 0 <= chord_n <= 127: fluid_engine.note_off(ch, chord_n)
                else:
                    fluid_engine.note_off(ch, n)

                if params.engine_mode == "ANALOG":
                     if n == active_note: amp.release(); vcf.release(); active_note=None; params.gate_status=False
                else:
                    vcf.release(); params.gate_status=False

    elif st == 0xB0:
        if ch == 0:
            handle_cc(data1, data2)
            log_str = f"CC #{data1} Val:{data2}"
        else:
            fluid_engine.send_cc(ch, data1, data2)

    elif st == 0xC0:
        if "DIGITAL" in params.engine_mode or ch != 0:
            params.sf_program = data1
            fluid_engine.change_program(ch, data1)
            log_str = f"Ch{ch} PC: {data1}"

    if log_str and ch == 0: add_log(log_str)

def midi_loop(midi_in):
    while is_running:
        msg = midi_in.get_message()
        if msg:
            m, _ = msg
            if len(m) >= 2: process_midi_event(m[0], m[1], m[2] if len(m)>2 else 0)
        time.sleep(0.001)

# --- Main ---
if __name__ == "__main__":
    print("Initializing Synth (v60: Arpeggiator)...")

    disp_mgr = DisplayManager()

    print("Searching for audio device with keyword: 'USB'...")
    devs = sd.query_devices()
    usb_idx = None
    for i, d in enumerate(devs):
        if TARGET_DEVICE_KEYWORD in d['name'] and d['max_output_channels'] > 0:
            usb_idx = i
            print(f"Found Target Device: {d['name']} (Index: {i})")
            break

    if usb_idx is None:
        print("Warning: USB Device not found. Using system default.")

    fluid_engine.init_synth()

    mi=rtmidi.MidiIn()
    ports = mi.get_ports(); found_idx = -1
    for i, p_name in enumerate(ports):
        if "Midi Through" not in p_name: found_idx = i; break
    if found_idx != -1: mi.open_port(found_idx); print(f"MIDI Connected: {ports[found_idx]}")
    else: mi.open_virtual_port("PySynth"); print("MIDI: Virtual Port")
    threading.Thread(target=midi_loop,args=(mi,),daemon=True).start()

    print("Starting Audio Stream...")

    stream = sd.OutputStream(
        device=usb_idx,
        channels=CHANNELS,
        samplerate=SAMPLE_RATE,
        dtype=DTYPE,
        blocksize=BLOCK_SIZE,
        latency='high',
        callback=sd_callback
    )
    stream.start()

    print("System Running.")

    try:
        while True:
            start = time.time()
            disp_mgr.update()
            elapsed = time.time() - start
            if elapsed < 0.05:
                time.sleep(0.05 - elapsed)

    except KeyboardInterrupt:
        print("\nStopping...")
        is_running = False
        midi_player.stop()
        stream.stop()
        mi.close_port()
        print("Bye!")

# code_name: raspi4_polysynth_v9_effects
# Version: 9.0.0
# Description: Multicore + MIDI Player + FX (Chorus/Delay)
# Hardware: Raspberry Pi 4, USB DAC, AKAI MPK Mini (CC 1-8)

import tkinter as tk
from tkinter import ttk
from tkinter import filedialog
import numpy as np
import sounddevice as sd
import mido
import threading
import time
import sys
import multiprocessing
import queue
import os

# --- Visualization Imports ---
import matplotlib
matplotlib.use("TkAgg")
from matplotlib.backends.backend_tkagg import FigureCanvasTkAgg
from matplotlib.figure import Figure

# --- System Config ---
SAMPLE_RATE = 48000
BLOCK_SIZE = 1024
POLYPHONY = 6
CHANNELS = 2
VIZ_FPS = 30

# --- Shared Default Parameters ---
DEFAULT_PARAMS = {
    'waveform': 'square',
    'pulse_width': 0.5,
    'cutoff': 1.0,
    'resonance': 0.0,
    'amp_attack': 0.05,
    'amp_release': 0.5,
    'lfo_rate': 5.0,
    'lfo_amount': 0.0,
    'volume': 0.8,
    'velocity_sense': 1.0,
    'chorus_mix': 0.0,  # 0.0 - 1.0
    'delay_mix': 0.0    # 0.0 - 1.0
}

# --- MIDI CC Mapping (FX用に変更) ---
CC_MAP = {
    1: 'cutoff', 2: 'resonance', 3: 'amp_attack', 4: 'amp_release',
    5: 'pulse_width',
    6: 'chorus_mix', # Old: lfo_rate -> New: Chorus
    7: 'delay_mix',  # Old: lfo_amount -> New: Delay
    8: 'volume'
}

# ==========================================
#  DSP Logic: Synthesis
# ==========================================
class ADSR:
    IDLE, ATTACK, RELEASE = 0, 1, 4
    def __init__(self):
        self.state = self.IDLE
        self.level = 0.0
    def trigger(self): self.state = self.ATTACK
    def release(self): self.state = self.RELEASE
    def process_block(self, size, attack_t, release_t):
        env = np.zeros(size)
        atk_s = max(1, int(attack_t * SAMPLE_RATE))
        rel_s = max(1, int(release_t * SAMPLE_RATE))
        step_atk = 1.0 / atk_s
        step_rel = 1.0 / rel_s
        for i in range(size):
            if self.state == self.ATTACK:
                self.level += step_atk
                if self.level >= 1.0: self.level = 1.0
            elif self.state == self.RELEASE:
                self.level -= step_rel
                if self.level <= 0.0:
                    self.level = 0.0
                    self.state = self.IDLE
            env[i] = self.level
        return env

class SynthVoice:
    def __init__(self):
        self.active = False
        self.note = 0
        self.phase = 0.0
        self.freq = 440.0
        self.velocity = 0
        self.amp_env = ADSR()

    def trigger(self, note, velocity):
        self.active = True
        self.note = note
        self.velocity = velocity / 127.0
        self.freq = 440.0 * (2.0 ** ((note - 69) / 12.0))
        self.phase = 0.0
        self.amp_env.trigger()

    def release(self):
        self.amp_env.release()

    def get_audio_block(self, size, p, lfo_val):
        if not self.active: return np.zeros(size)
        t = np.arange(size)
        phase_inc = self.freq / SAMPLE_RATE
        phases = self.phase + t * phase_inc
        phases_wrapped = phases % 1.0
        self.phase = (self.phase + size * phase_inc) % 1.0

        w_type = p['waveform']
        if w_type == 'square':
            pw = p['pulse_width']
            mod_pw = np.clip(pw + (lfo_val * p['lfo_amount'] * 0.2), 0.05, 0.95)
            osc = np.where(phases_wrapped < mod_pw, 1.0, -1.0)
        elif w_type == 'saw':
            osc = 2.0 * phases_wrapped - 1.0
        elif w_type == 'tri':
            osc = 2.0 * np.abs(2.0 * phases_wrapped - 1.0) - 1.0
        elif w_type == 'sine':
            osc = np.sin(2.0 * np.pi * phases_wrapped)
        else:
            osc = 2.0 * phases_wrapped - 1.0

        cutoff_mod = np.clip(p['cutoff'] + (lfo_val * p['lfo_amount'] * 0.5), 0.1, 1.0)
        tone_gain = 0.6 + (0.4 * cutoff_mod) # Gain Boosted

        if p['resonance'] > 0.1:
            osc += (osc * osc * osc * p['resonance'] * 2.0)
            osc = np.clip(osc, -1.5, 1.5)

        amp = self.amp_env.process_block(size, p['amp_attack'], p['amp_release'])
        if self.amp_env.state == ADSR.IDLE: self.active = False
        return osc * amp * self.velocity * tone_gain

class PolySynth:
    def __init__(self):
        self.voices = [SynthVoice() for _ in range(POLYPHONY)]
        self.lfo_phase = 0.0
    def note_on(self, note, vel):
        for v in self.voices:
            if not v.active:
                v.trigger(note, vel); return
    def note_off(self, note):
        for v in self.voices:
            if v.active and v.note == note: v.release()
    def get_block(self, frames, current_params):
        lfo_inc = current_params['lfo_rate'] / SAMPLE_RATE
        lfo_phases = self.lfo_phase + np.arange(frames) * lfo_inc
        lfo_out = np.sin(2.0 * np.pi * lfo_phases)
        self.lfo_phase = (self.lfo_phase + frames * lfo_inc) % 1.0

        mix = np.zeros(frames)
        vc = 0
        for v in self.voices:
            if v.active:
                mix += v.get_audio_block(frames, current_params, lfo_out)
                vc += 1

        # Note: Master Volume and Limiter moved to EffectProcessor for consistency
        return mix

# ==========================================
#  DSP Logic: Effects (New)
# ==========================================
class EffectProcessor:
    def __init__(self):
        # Chorus State
        self.chorus_buffer_size = 2048
        self.chorus_buffer = np.zeros(self.chorus_buffer_size)
        self.chorus_ptr = 0
        self.chorus_lfo_phase = 0.0

        # Delay State
        self.delay_len = int(0.4 * SAMPLE_RATE) # 400ms delay
        self.delay_buffer = np.zeros(self.delay_len)
        self.delay_ptr = 0

    def process(self, input_signal, params):
        # 1. Chorus Effect (Simple Modulated Delay)
        c_mix = params['chorus_mix']
        output = input_signal.copy()

        if c_mix > 0.01:
            # Write to ring buffer
            n = len(input_signal)
            indices = np.arange(n) + self.chorus_ptr
            np.put(self.chorus_buffer, indices % self.chorus_buffer_size, input_signal)

            # LFO for Delay Time modulation
            lfo_rate = 1.5 # Hz (Fixed for Chorus)
            lfo_depth_samples = 150 # ~3ms
            base_delay = 300 # ~6ms

            lfo_inc = lfo_rate / SAMPLE_RATE
            phases = self.chorus_lfo_phase + np.arange(n) * lfo_inc
            mod = np.sin(2.0 * np.pi * phases) * lfo_depth_samples
            self.chorus_lfo_phase = (self.chorus_lfo_phase + n * lfo_inc) % 1.0

            # Calculate Read Pointers (Integer indexing for speed on Pi)
            read_pos = (indices - base_delay - mod).astype(int)
            delayed_sig = np.take(self.chorus_buffer, read_pos % self.chorus_buffer_size)

            # Mix: Dry + Wet
            output = output * (1.0 - 0.5 * c_mix) + delayed_sig * c_mix

            # Update pointer
            self.chorus_ptr = (self.chorus_ptr + n) % self.chorus_buffer_size

        # 2. Delay Effect (Simple Feedback Echo)
        d_mix = params['delay_mix']
        if d_mix > 0.01:
            n = len(output)
            # Read from delay buffer (Feedback loop)
            # Current time reading
            read_indices = (np.arange(n) + self.delay_ptr) % self.delay_len
            delay_sig = np.take(self.delay_buffer, read_indices)

            # Mix Wet signal into Output
            output = output + delay_sig * d_mix

            # Write Output back to delay buffer (with Feedback decay)
            feedback = 0.5
            to_write = input_signal + (delay_sig * feedback) # Simple feed-forward + feedback
            np.put(self.delay_buffer, read_indices, to_write)

            self.delay_ptr = (self.delay_ptr + n) % self.delay_len

        # 3. Master Volume & Limiter
        output *= params['volume']
        np.clip(output, -0.95, 0.95, out=output)

        # Stereo Expansion (Simple duplicate for now)
        return np.column_stack((output, output)).astype(np.float32)

# ==========================================
#  AUDIO PROCESS
# ==========================================
def audio_engine_process(control_queue, viz_queue, feedback_queue, device_id):
    print(f"[Audio Process] PID: {multiprocessing.current_process().pid} Started.")

    synth = PolySynth()
    fx = EffectProcessor() # ★ FX Engine
    current_params = DEFAULT_PARAMS.copy()

    def apply_note_on(note, velocity):
        vel = velocity
        if current_params['velocity_sense'] < 0.5:
            vel = 127
        synth.note_on(note, vel)

    def midi_listener():
        ports = mido.get_input_names()
        target = None
        for p in ports:
            if any(x in p for x in ["MPK", "Midi Through", "AKAI", "USB Audio"]): target = p
        if not target and ports: target = ports[0]

        if target:
            print(f"[Audio Process] MIDI Connected: {target}")
            with mido.open_input(target) as inport:
                for msg in inport:
                    if msg.type == 'note_on' and msg.velocity > 0:
                        apply_note_on(msg.note, msg.velocity)
                    elif msg.type == 'note_off' or (msg.type == 'note_on' and msg.velocity==0):
                        synth.note_off(msg.note)
                    elif msg.type == 'control_change':
                        cc = msg.control
                        val = msg.value / 127.0
                        if cc in CC_MAP:
                            key = CC_MAP[cc]
                            # FX params usually linear 0-1
                            if key in ['chorus_mix', 'delay_mix', 'volume', 'resonance', 'lfo_amount']:
                                new_val = val
                            # Others need scaling
                            elif key == 'cutoff': new_val = 0.1 + (val * 0.9)
                            elif key == 'lfo_rate': new_val = 0.1 + val * 20.0
                            elif key == 'pulse_width': new_val = 0.05 + (val * 0.9)
                            elif key == 'amp_attack': new_val = 0.01 + val * 2.0
                            elif key == 'amp_release': new_val = 0.1 + val * 5.0
                            else: new_val = val

                            current_params[key] = new_val
                            feedback_queue.put(('midi_update', key, new_val))

    t_midi = threading.Thread(target=midi_listener, daemon=True)
    t_midi.start()

    def callback(outdata, frames, time_info, status):
        try:
            while True:
                msg = control_queue.get_nowait()
                cmd = msg[0]
                if cmd == 'set_param': current_params[msg[1]] = msg[2]
                elif cmd == 'note_on': apply_note_on(msg[1], msg[2])
                elif cmd == 'note_off': synth.note_off(msg[1])
                elif cmd == 'stop': raise sd.CallbackAbort
        except queue.Empty: pass

        # 1. Synthesize (Mono)
        raw_sig = synth.get_block(frames, current_params)

        # 2. Apply Effects & Stereo Out
        final_sig = fx.process(raw_sig, current_params)

        if len(final_sig) < len(outdata):
            outdata[:len(final_sig)] = final_sig
            outdata[len(final_sig):] = 0
        else:
            outdata[:] = final_sig

        try:
            # Visualize L channel
            viz_queue.put_nowait(final_sig[:, 0].copy())
        except queue.Full: pass

    try:
        with sd.OutputStream(device=device_id, channels=CHANNELS,
                             callback=callback, samplerate=SAMPLE_RATE,
                             blocksize=BLOCK_SIZE):
            while True: time.sleep(1)
    except KeyboardInterrupt: pass
    except Exception as e: print(f"[Audio] Error: {e}")

# ==========================================
#  GUI PROCESS
# ==========================================
class SynthGUI:
    def __init__(self, root, control_queue, viz_queue, feedback_queue):
        self.root = root
        self.control_queue = control_queue
        self.viz_queue = viz_queue
        self.feedback_queue = feedback_queue
        self.params = DEFAULT_PARAMS.copy()
        self.suppress_send = False

        self.midi_thread = None
        self.midi_playing = False
        self.midi_file_path = ""

        self.root.title("Raspi4 PolySynth v9.0 - FX Edition")
        self.root.geometry("950x580") # 少し高さを確保
        self.root.configure(bg="#2b2b2b")
        self.root.protocol("WM_DELETE_WINDOW", self.on_close)

        self.sliders = {}
        self.view_mode = "SCOPE"

        self.setup_ui()
        self.setup_plots()
        self.update_plot()
        self.check_feedback_loop()

    def setup_ui(self):
        style = ttk.Style()
        style.theme_use('clam')
        style.configure("TLabelframe", background="#2b2b2b", foreground="white")
        style.configure("TLabelframe.Label", background="#2b2b2b", foreground="#00ff00")
        style.configure("TCheckbutton", background="#2b2b2b", foreground="white")

        main_container = tk.Frame(self.root, bg="#2b2b2b")
        main_container.pack(fill="both", expand=True)

        left_frame = tk.Frame(main_container, bg="#2b2b2b", width=380)
        left_frame.pack(side="left", fill="y", padx=5, pady=5)
        self.right_frame = tk.Frame(main_container, bg="#101010")
        self.right_frame.pack(side="right", fill="both", expand=True, padx=5, pady=5)

        self.create_controls(left_frame)
        self.create_player_controls(left_frame)

        btn_frame = tk.Frame(left_frame, bg="#2b2b2b")
        btn_frame.pack(side="bottom", fill="x", pady=5)

        self.view_btn = tk.Button(btn_frame, text="VIEW", command=self.toggle_view,
                                  bg="#0066cc", fg="white", font=("Arial", 9, "bold"), height=1)
        self.view_btn.pack(side="left", fill="x", expand=True, padx=2)

        exit_btn = tk.Button(btn_frame, text="EXIT", command=self.on_close,
                  bg="#cc0000", fg="white", font=("Arial", 9, "bold"), height=1)
        exit_btn.pack(side="right", fill="x", expand=True, padx=2)

    def create_controls(self, parent):
        groups = [
            ("OSCILLATOR [K5]", [("Pulse Width", "pulse_width", 0.05, 0.95)]),
            ("FILTER / TONE [K1, K2]", [("Cutoff", "cutoff", 0.1, 1.0), ("Resonance", "resonance", 0, 1.0)]),
            ("MODULATION [Slider]", [("Rate", "lfo_rate", 0.1, 20.0), ("Amount", "lfo_amount", 0.0, 1.0)]),
            ("ENVELOPE [K3, K4]", [("Attack", "amp_attack", 0.01, 2.0), ("Release", "amp_release", 0.1, 5.0)]),
            # ★ New Effects Section
            ("EFFECTS [K6, K7]", [("Chorus Mix", "chorus_mix", 0.0, 1.0), ("Delay Mix", "delay_mix", 0.0, 1.0)]),
            ("MASTER [K8]", [("Volume", "volume", 0.0, 1.0)])
        ]

        osc_frame = ttk.LabelFrame(parent, text="OSCILLATOR [K5]")
        osc_frame.pack(fill="x", pady=2)
        wave_sub = tk.Frame(osc_frame, bg="#2b2b2b")
        wave_sub.pack(side="top", fill="x", pady=2)
        self.wave_var = tk.StringVar(value=self.params['waveform'])
        for label, val in [("Sqr", "square"), ("Saw", "saw"), ("Tri", "tri"), ("Sin", "sine")]:
            ttk.Radiobutton(wave_sub, text=label, value=val, variable=self.wave_var,
                            command=self.on_wave_change).pack(side="left", padx=5)

        for g_name, ctrls in groups:
            if g_name.startswith("OSC"): frame = osc_frame
            elif g_name.startswith("MASTER"):
                frame = ttk.LabelFrame(parent, text=g_name)
                frame.pack(fill="x", pady=2)
                self.vel_sense_var = tk.IntVar(value=int(self.params['velocity_sense']))
                cb = ttk.Checkbutton(frame, text="Velocity Sense", variable=self.vel_sense_var,
                                     command=self.on_vel_sense_change)
                cb.pack(anchor="w", padx=5, pady=0)
            else:
                frame = ttk.LabelFrame(parent, text=g_name)
                frame.pack(fill="x", pady=2)

            for label, key, min_v, max_v in ctrls:
                f = tk.Frame(frame, bg="#2b2b2b")
                f.pack(fill="x", padx=5, pady=0)
                tk.Label(f, text=label, width=12, anchor="w", bg="#2b2b2b", fg="white", font=("Arial", 8)).pack(side="left")
                s = tk.Scale(f, from_=min_v, to=max_v, orient="horizontal", resolution=0.01,
                             bg="#404040", fg="white", highlightthickness=0, width=10,
                             command=lambda v, k=key: self.on_slider_change(k, v))
                s.set(self.params[key])
                s.pack(side="right", fill="x", expand=True)
                self.sliders[key] = s

    def create_player_controls(self, parent):
        player_frame = ttk.LabelFrame(parent, text="MIDI PLAYER")
        player_frame.pack(fill="x", pady=5)

        self.lbl_file = tk.Label(player_frame, text="No file loaded", bg="#2b2b2b", fg="#aaaaaa", anchor="w", font=("Arial", 8))
        self.lbl_file.pack(fill="x", padx=5, pady=0)

        btn_box = tk.Frame(player_frame, bg="#2b2b2b")
        btn_box.pack(fill="x", pady=2)

        tk.Button(btn_box, text="LOAD", command=self.load_midi_file,
                  bg="#444444", fg="white", width=8, font=("Arial", 8)).pack(side="left", padx=2)
        tk.Button(btn_box, text="PLAY", command=self.play_midi,
                  bg="#008800", fg="white", width=6, font=("Arial", 8)).pack(side="left", padx=2)
        tk.Button(btn_box, text="STOP", command=self.stop_midi,
                  bg="#880000", fg="white", width=6, font=("Arial", 8)).pack(side="left", padx=2)

    def load_midi_file(self):
        path = filedialog.askopenfilename(filetypes=[("MIDI Files", "*.mid"), ("All Files", "*.*")])
        if path:
            self.midi_file_path = path
            self.lbl_file.config(text=os.path.basename(path))

    def play_midi(self):
        if not self.midi_file_path: return
        if self.midi_playing: return
        self.midi_playing = True
        self.midi_thread = threading.Thread(target=self._midi_worker, daemon=True)
        self.midi_thread.start()

    def stop_midi(self):
        self.midi_playing = False

    def _midi_worker(self):
        try:
            mid = mido.MidiFile(self.midi_file_path)
            for msg in mid.play():
                if not self.midi_playing: break
                if msg.type == 'note_on' and msg.velocity > 0:
                    self.control_queue.put(('note_on', msg.note, msg.velocity))
                elif msg.type == 'note_off' or (msg.type == 'note_on' and msg.velocity == 0):
                    self.control_queue.put(('note_off', msg.note))
        except Exception: pass
        self.midi_playing = False

    def setup_plots(self):
        self.fig = Figure(figsize=(5, 3.2), dpi=100, facecolor="#101010")
        self.ax1 = self.fig.add_subplot(211)
        self.ax2 = self.fig.add_subplot(212)
        self.canvas = FigureCanvasTkAgg(self.fig, master=self.right_frame)
        self.canvas.get_tk_widget().pack(fill="both", expand=True)
        self.line1, = self.ax1.plot([], [], color="#00ff00", lw=1)
        self.line2, = self.ax2.plot([], [], color="#00ffff", lw=1)
        self.x_wave = np.arange(0, BLOCK_SIZE, 4)
        self.x_freq = np.fft.rfftfreq(BLOCK_SIZE, 1/SAMPLE_RATE)
        self.setup_scope_view()

    def setup_scope_view(self):
        self.ax1.clear(); self.ax2.clear()
        self.ax1.set_facecolor("#000000"); self.ax2.set_facecolor("#000000")
        self.ax1.set_title("Waveform", color="white", fontsize=8)
        self.ax2.set_title("Spectrum", color="white", fontsize=8)
        self.ax1.tick_params(labelsize=6)
        self.ax2.tick_params(labelsize=6)
        self.ax1.set_ylim(-1.1, 1.1); self.ax1.set_xlim(0, BLOCK_SIZE)
        self.ax2.set_ylim(0, 0.5); self.ax2.set_xlim(0, 5000)
        self.ax1.grid(True, color="#333333"); self.ax2.grid(True, color="#333333")
        self.line1, = self.ax1.plot(self.x_wave, np.zeros(len(self.x_wave)), color="#00ff00", lw=1)
        self.line2, = self.ax2.plot(self.x_freq, np.zeros(len(self.x_freq)), color="#00ffff", lw=1)
        self.fig.tight_layout()
        self.canvas.draw()

    def setup_param_view(self):
        self.ax1.clear(); self.ax2.clear()
        self.ax1.set_facecolor("#000000"); self.ax2.set_facecolor("#000000")
        self.ax1.set_title("ADSR Setting", color="white", fontsize=8)
        self.ax2.set_title("VCF Response", color="white", fontsize=8)
        self.ax1.tick_params(labelsize=6)
        self.ax2.tick_params(labelsize=6)
        self.ax1.set_ylim(0, 1.1); self.ax1.set_xlim(0, 3.0)
        self.ax2.set_ylim(0, 1.2); self.ax2.set_xlim(20, 10000)
        self.ax2.set_xscale('log')
        self.ax1.grid(True, color="#333333"); self.ax2.grid(True, color="#333333")
        self.line1, = self.ax1.plot([], [], color="#ffcc00", lw=2)
        self.line2, = self.ax2.plot([], [], color="#ff00ff", lw=2)
        self.fig.tight_layout()
        self.canvas.draw()

    def on_slider_change(self, key, value):
        if self.suppress_send: return
        val = float(value)
        self.params[key] = val
        self.control_queue.put(('set_param', key, val))

    def on_wave_change(self):
        val = self.wave_var.get()
        self.params['waveform'] = val
        self.control_queue.put(('set_param', 'waveform', val))

    def on_vel_sense_change(self):
        val = float(self.vel_sense_var.get())
        self.params['velocity_sense'] = val
        self.control_queue.put(('set_param', 'velocity_sense', val))

    def toggle_view(self):
        if self.view_mode == "SCOPE":
            self.view_mode = "PARAM"
            self.setup_param_view()
        else:
            self.view_mode = "SCOPE"
            self.setup_scope_view()

    def check_feedback_loop(self):
        try:
            while not self.feedback_queue.empty():
                msg = self.feedback_queue.get_nowait()
                if msg[0] == 'midi_update':
                    key, val = msg[1], msg[2]
                    self.suppress_send = True
                    if key in self.sliders:
                        self.sliders[key].set(val)
                    self.params[key] = val
                    self.suppress_send = False
        except queue.Empty: pass
        self.root.after(50, self.check_feedback_loop)

    def update_plot(self):
        if self.view_mode == "SCOPE":
            try:
                raw_audio = None
                while not self.viz_queue.empty():
                    raw_audio = self.viz_queue.get_nowait()
                if raw_audio is not None:
                    ds_audio = raw_audio[::4]
                    if len(ds_audio) == len(self.x_wave):
                        self.line1.set_ydata(ds_audio * 3.0)
                    window = np.hanning(len(raw_audio))
                    fft_res = np.fft.rfft(raw_audio * window)
                    fft_mag = np.abs(fft_res) / len(raw_audio) * 15.0
                    if len(fft_mag) == len(self.x_freq):
                        self.line2.set_ydata(fft_mag)
                    self.canvas.draw_idle()
            except queue.Empty: pass
        else:
            att, rel = self.params['amp_attack'], self.params['amp_release']
            t_adsr = np.linspace(0, 3.0, 300)
            y_adsr = np.zeros_like(t_adsr)
            hold = 0.5
            for i, t in enumerate(t_adsr):
                if t < att: y_adsr[i] = t/att if att>0 else 1
                elif t < att+hold: y_adsr[i] = 1
                elif t < att+hold+rel: y_adsr[i] = 1 - (t-(att+hold))/rel
            self.line1.set_data(t_adsr, y_adsr)
            cutoff = self.params['cutoff']
            res = self.params['resonance']
            fc = 50 + cutoff * 8000
            f_vcf = np.logspace(np.log10(20), np.log10(10000), 200)
            q = 0.7 + res * 4.0
            ratio = f_vcf / fc
            y_vcf = np.clip(1.0 / np.sqrt((1-ratio**2)**2 + (ratio/q)**2), 0, 1.2)
            self.line2.set_data(f_vcf, y_vcf)
            self.canvas.draw_idle()
        self.root.after(int(1000/VIZ_FPS), self.update_plot)

    def on_close(self):
        self.midi_playing = False
        self.control_queue.put(('stop', None, None))
        self.root.quit()
        self.root.destroy()

def find_audio_device_safe():
    devices = sd.query_devices()
    print("\n--- Audio Devices ---")
    target_id = None
    for i, dev in enumerate(devices):
        if dev['max_output_channels'] > 0:
            print(f"ID {i}: {dev['name']}")
            if "USB" in dev['name']: target_id = i
    return target_id if target_id is not None else sd.default.device[1]

if __name__ == "__main__":
    multiprocessing.freeze_support()
    control_q = multiprocessing.Queue()
    viz_q = multiprocessing.Queue(maxsize=2)
    feedback_q = multiprocessing.Queue()
    dev_id = find_audio_device_safe()
    print(f"\nTarget Audio Device ID: {dev_id}")

    p_audio = multiprocessing.Process(
        target=audio_engine_process,
        args=(control_q, viz_q, feedback_q, dev_id),
        daemon=True
    )
    p_audio.start()

    try:
        root = tk.Tk()
        app = SynthGUI(root, control_q, viz_q, feedback_q)
        root.mainloop()
    except KeyboardInterrupt:
        pass
    finally:
        print("Terminating...")
        p_audio.terminate()
        p_audio.join()
        sys.exit(0)

# py_fm_synth_rpi4_v12.1_sync.py
# Version: 12.1.0
# Description: 4-OP FM with full GUI-Preset-Operator synchronization.

import sounddevice as sd
import numpy as np
import threading
import tkinter as tk
from tkinter import ttk
import mido
import time
import sys
import multiprocessing
from queue import Empty

# --- 設定 ---
SAMPLE_RATE = 48000
BLOCK_SIZE = 1024
CHANNELS = 2
MAX_VOICES = 3
PLOT_INTERVAL_MS = 100

# --- 4-OP プリセット ---
PRESETS = {
    "4-OP Grand Piano": {
        'algo': 1, 'master_gain': 0.55, 'fb': 0.4,
        'ops': [
            {'idx': 1.0, 'ratio': 1.0, 'atk': 0.01, 'rel': 1.2}, # Op1
            {'idx': 2.2, 'ratio': 1.003, 'atk': 0.01, 'rel': 0.5}, # Op2
            {'idx': 0.8, 'ratio': 7.0, 'atk': 0.01, 'rel': 0.2}, # Op3
            {'idx': 2.0, 'ratio': 14.0, 'atk': 0.01, 'rel': 0.1} # Op4
        ]
    },
    "4-OP Trumpet": {
        'algo': 1, 'master_gain': 0.4, 'fb': 0.7,
        'ops': [
            {'idx': 1.0, 'ratio': 1.0, 'atk': 0.08, 'rel': 0.2},
            {'idx': 3.5, 'ratio': 1.0, 'atk': 0.1, 'rel': 0.2},
            {'idx': 1.0, 'ratio': 2.0, 'atk': 0.1, 'rel': 0.2},
            {'idx': 0.5, 'ratio': 3.0, 'atk': 0.1, 'rel': 0.2}
        ]
    },
    "4-OP Pipe Organ": {
        'algo': 3, 'master_gain': 0.4, 'fb': 0.0,
        'ops': [
            {'idx': 1.0, 'ratio': 1.0, 'atk': 0.05, 'rel': 0.2},
            {'idx': 0.5, 'ratio': 2.0, 'atk': 0.05, 'rel': 0.2},
            {'idx': 0.3, 'ratio': 4.0, 'atk': 0.05, 'rel': 0.2},
            {'idx': 0.2, 'ratio': 0.5, 'atk': 0.05, 'rel': 0.2}
        ]
    }
}

# パラメータレンジ定義
RANGE = {
    'idx': (0.0, 20.0), 'ratio': (0.5, 15.0), 'atk': (0.01, 2.0), 'rel': (0.01, 2.0),
    'fb': (0.0, 0.95), 'master_gain': (0.0, 1.0)
}

# ==========================================
#  Audio Process (Independent Core)
# ==========================================

class FMVoice4Op:
    def __init__(self, sample_rate, block_size):
        self.sample_rate = sample_rate
        self.block_size = block_size
        self.active, self.gate, self.finished = False, False, True
        self.note = 0; self.velocity = 0.0
        self.phases = np.zeros(4); self.env_levels = np.zeros(4)
        self.prev_fb_out = 0.0; self.carrier_buf = np.zeros(block_size, dtype=np.float32)

    def trigger(self, note, velocity):
        self.note, self.velocity = note, velocity
        self.gate, self.active, self.finished = True, True, False

    def add_to_buffer(self, mix_buffer, params):
        if self.finished: return
        target_v = (params['fixed_vel_val'] if params['use_fixed_vel'] else self.velocity) if self.gate else 0.0

        envs = []
        for i in range(4):
            p = params['ops'][i]
            rate = p['atk'] if self.gate else p['rel']
            step = (target_v - self.env_levels[i]) * (self.block_size / (self.sample_rate * rate))
            e = np.linspace(self.env_levels[i], self.env_levels[i] + step, self.block_size)
            self.env_levels[i] = e[-1]; envs.append(e)

        if not self.gate and self.env_levels[0] < 0.001:
            self.active, self.finished = False, True; return

        f0 = 440.0 * (2 ** ((self.note - 69) / 12.0))
        t = np.arange(self.block_size) / self.sample_rate
        algo = params['algo']
        op_outs = [np.zeros(self.block_size) for _ in range(4)]

        for i in reversed(range(4)):
            p = params['ops'][i]; freq = f0 * p['ratio']
            mod_in = np.zeros(self.block_size)
            if algo == 1:
                if i < 3: mod_in = op_outs[i+1] * params['ops'][i+1]['idx'] * envs[i+1]
            elif algo == 2:
                if i == 2: mod_in = op_outs[3] * params['ops'][3]['idx'] * envs[3]
                if i == 0: mod_in = op_outs[1] * params['ops'][1]['idx'] * envs[1]

            fb_val = (self.prev_fb_out * params['fb'] * 2.0) if i == 3 else 0.0
            sig = np.sin(2 * np.pi * freq * t + self.phases[i] + mod_in + fb_val)
            op_outs[i] = sig
            if i == 3: self.prev_fb_out = sig[-1]
            self.phases[i] = (self.phases[i] + 2 * np.pi * freq * self.block_size / self.sample_rate) % (2 * np.pi)

        final_out = np.zeros(self.block_size)
        if algo == 1: final_out = op_outs[0] * params['ops'][0]['idx'] * envs[0]
        elif algo == 2: final_out = (op_outs[0] * envs[0] + op_outs[2] * envs[2]) * 0.5
        elif algo == 3:
            for i in range(4): final_out += op_outs[i] * envs[i] * 0.25

        np.add(mix_buffer, final_out, out=mix_buffer)

def audio_process_entry(cmd_q, mon_q):
    from copy import deepcopy
    # 初期化
    current_params = deepcopy(PRESETS["4-OP Grand Piano"])
    current_params.update({'use_fixed_vel': False, 'fixed_vel_val': 1.0})
    voices = [FMVoice4Op(SAMPLE_RATE, BLOCK_SIZE) for _ in range(MAX_VOICES)]
    mix_buffer = np.zeros(BLOCK_SIZE, dtype=np.float32)

    devices = sd.query_devices()
    target_id = next((i for i, d in enumerate(devices) if d['max_output_channels'] > 0 and "USB" in d['name']), sd.default.device[1])

    def callback(outdata, frames, time_info, status):
        try:
            while True:
                cmd, key, val = cmd_q.get_nowait()
                if cmd == 'note_on':
                    for v in voices:
                        if not v.active: v.trigger(key, val); break
                elif cmd == 'note_off':
                    for v in voices:
                        if v.note == key: v.gate = False
                elif cmd == 'param':
                    if '.' in key: # ops.0.idx
                        _, op_i, p_k = key.split('.'); current_params['ops'][int(op_i)][p_k] = val
                    else: current_params[key] = val
                elif cmd == 'preset':
                    # 音色を深くコピーして反映
                    new_p = deepcopy(PRESETS[key])
                    for k in new_p: current_params[k] = new_p[k]
        except Empty: pass

        mix_buffer.fill(0.0); active = False
        for v in voices:
            if v.active: v.add_to_buffer(mix_buffer, current_params); active = True
        np.multiply(mix_buffer, current_params['master_gain'], out=mix_buffer)
        np.clip(mix_buffer, -1.0, 1.0, out=mix_buffer)
        outdata[:, 0] = mix_buffer; outdata[:, 1] = mix_buffer
        if mon_q.empty() and active: mon_q.put_nowait(mix_buffer[::8].copy())

    with sd.OutputStream(device=target_id, channels=CHANNELS, samplerate=SAMPLE_RATE, blocksize=BLOCK_SIZE, latency='high', callback=callback):
        while True: time.sleep(1)

# ==========================================
#  Main Process (GUI & MIDI)
# ==========================================

class SynthGUI:
    def __init__(self, root, cmd_q, mon_q):
        self.root, self.cmd_q, self.mon_q = root, cmd_q, mon_q
        self.root.title("FM Synth v12.1 (Full Sync)")

        # 現在のパラメータ状態をGUI側でも保持（同期用）
        from copy import deepcopy
        self.gui_params = deepcopy(PRESETS["4-OP Grand Piano"])

        # --- Layout ---
        self.top = ttk.Frame(root, padding=5); self.top.pack(side=tk.TOP, fill=tk.X)
        self.mid = ttk.Frame(root, padding=5); self.mid.pack(side=tk.TOP, fill=tk.X)
        self.left = ttk.Frame(root, padding=10); self.left.pack(side=tk.LEFT, fill=tk.Y)
        self.right = ttk.Frame(root, padding=10); self.right.pack(side=tk.RIGHT, fill=tk.BOTH, expand=True)

        # Op Selector
        op_sel_frame = ttk.LabelFrame(self.top, text="Edit Operator Select", padding=5); op_sel_frame.pack(side=tk.LEFT, padx=5)
        self.op_var = tk.IntVar(value=0)
        for i in range(4):
            ttk.Radiobutton(op_sel_frame, text=f"Op{i+1}", variable=self.op_var, value=i, command=self.sync_gui_to_current_op).pack(side=tk.LEFT, padx=10)

        # Global
        glob_frame = ttk.LabelFrame(self.top, text="Global Settings", padding=5); glob_frame.pack(side=tk.LEFT, padx=5, fill=tk.X, expand=True)
        self.algo_var = tk.DoubleVar(value=1.0)
        ttk.Label(glob_frame, text="Algo:").pack(side=tk.LEFT)
        ttk.Scale(glob_frame, from_=1, to=3, variable=self.algo_var, command=self.on_algo_change).pack(side=tk.LEFT, padx=5, fill=tk.X, expand=True)

        # Knobs
        k_frame = ttk.LabelFrame(self.mid, text="K1-K8 Knobs Sync", padding=5); k_frame.pack(fill=tk.X)
        self.knob_vars = {}; self.knob_labels = {}
        for i in range(1, 9):
            f = ttk.Frame(k_frame); f.pack(side=tk.LEFT, padx=10, expand=True)
            ttk.Label(f, text=f"K{i}", font=('Arial', 8, 'bold')).pack()
            v = tk.DoubleVar(value=0)
            s = ttk.Scale(f, from_=1.0, to=0.0, orient=tk.VERTICAL, length=120, variable=v)
            s.pack(pady=2); self.knob_vars[i] = v
            lbl = ttk.Label(f, text="-", font=('Arial', 8), foreground="blue"); lbl.pack(); self.knob_labels[i] = lbl

        # Settings
        s_frame = ttk.LabelFrame(self.left, text="Settings", padding=5); s_frame.pack(fill=tk.X)
        self.preset_var = tk.StringVar(value="4-OP Grand Piano")
        self.combo = ttk.Combobox(s_frame, textvariable=self.preset_var, values=list(PRESETS.keys()), state="readonly")
        self.combo.pack(fill=tk.X, pady=5); self.combo.bind("<<ComboboxSelected>>", self.on_preset_select)

        self.v_fix = tk.BooleanVar(value=False)
        ttk.Checkbutton(s_frame, text="Velocity Fix", variable=self.v_fix, command=lambda: self.cmd_q.put(('param', 'use_fixed_vel', self.v_fix.get()))).pack(anchor=tk.W)
        ttk.Button(self.left, text="EXIT", command=sys.exit).pack(pady=40)

        # Visuals
        from matplotlib.figure import Figure
        from matplotlib.backends.backend_tkagg import FigureCanvasTkAgg
        self.fig = Figure(figsize=(5, 3), dpi=80); self.ax_w = self.fig.add_subplot(211); self.ax_f = self.fig.add_subplot(212)
        self.fig.subplots_adjust(hspace=0.6); self.line_w, = self.ax_w.plot(np.zeros(BLOCK_SIZE//8))
        self.ax_w.set_ylim(-1.1, 1.1); self.line_f, = self.ax_f.plot(np.zeros(BLOCK_SIZE//16 + 1))
        self.ax_f.set_ylim(0, 100); self.canvas = FigureCanvasTkAgg(self.fig, master=self.right); self.canvas.get_tk_widget().pack(fill=tk.BOTH, expand=True)

        self.sync_gui_to_current_op()
        self.update_plot()

    def on_algo_change(self, v):
        val = int(float(v))
        self.gui_params['algo'] = val
        self.cmd_q.put(('param', 'algo', val))

    def on_preset_select(self, e):
        name = self.preset_var.get()
        from copy import deepcopy
        self.gui_params = deepcopy(PRESETS[name])
        self.cmd_q.put(('preset', name, 0))
        # 画面の全スライダーとAlgoを更新
        self.sync_gui_to_current_op()
        self.algo_var.set(float(self.gui_params['algo']))

    def sync_gui_to_current_op(self):
        """ オペレータ切り替えやプリセット変更時にGUIスライダーを連動させる """
        op_idx = self.op_var.get()
        p = self.gui_params['ops'][op_idx]

        # ラベル更新
        labels = {1: f"Op{op_idx+1} Idx", 2: f"Op{op_idx+1} Ratio", 3: f"Op{op_idx+1} Atk", 4: f"Op{op_idx+1} Rel", 5: "Feedback", 6: "Algo", 7: "-", 8: "Master Gain"}
        for i, text in labels.items(): self.knob_labels[i].config(text=text)

        # スライダー値の逆換算設定
        def norm(val, key): return (val - RANGE[key][0]) / (RANGE[key][1] - RANGE[key][0])

        self.knob_vars[1].set(norm(p['idx'], 'idx'))
        self.knob_vars[2].set(norm(p['ratio'], 'ratio'))
        self.knob_vars[3].set(norm(p['atk'], 'atk'))
        self.knob_vars[4].set(norm(p['rel'], 'rel'))
        self.knob_vars[5].set(norm(self.gui_params['fb'], 'fb'))
        self.knob_vars[6].set(norm(self.gui_params['algo'], 'master_gain')) # Algoは便宜上0-1にマップ
        self.knob_vars[8].set(norm(self.gui_params['master_gain'], 'master_gain'))

    def update_plot(self):
        try:
            data = None
            while not self.mon_q.empty(): data = self.mon_q.get_nowait()
            if data is not None:
                self.line_wave.set_ydata(data)
                fft = 20 * np.log10(np.abs(np.fft.rfft(data * np.hanning(len(data)))) + 1e-6) + 60
                self.line_fft.set_ydata(fft); self.canvas.draw_idle()
        except: pass
        self.root.after(PLOT_INTERVAL_MS, self.update_plot)

def midi_loop(cmd_q, gui):
    ports = mido.get_input_names()
    target = next((p for p in ports if "AKAI" in p or "MIDI" in p), None)
    if not target: return
    with mido.open_input(target) as port:
        for msg in port:
            if msg.type == 'note_on' and msg.velocity > 0: cmd_q.put(('note_on', msg.note, msg.velocity/127.0))
            elif msg.type in ['note_off', 'note_on']: cmd_q.put(('note_off', msg.note, 0))
            elif msg.type == 'control_change' and 1 <= msg.control <= 8:
                cc = msg.control; norm = msg.value / 127.0; op = gui.op_var.get()
                # パラメータ計算
                def denorm(n, key): return RANGE[key][0] + n * (RANGE[key][1] - RANGE[key][0])

                if cc == 1:
                    val = denorm(norm, 'idx'); gui.gui_params['ops'][op]['idx'] = val
                    cmd_q.put(('param', f'ops.{op}.idx', val))
                elif cc == 2:
                    val = denorm(norm, 'ratio'); gui.gui_params['ops'][op]['ratio'] = val
                    cmd_q.put(('param', f'ops.{op}.ratio', val))
                elif cc == 3:
                    val = denorm(norm, 'atk'); gui.gui_params['ops'][op]['atk'] = val
                    cmd_q.put(('param', f'ops.{op}.atk', val))
                elif cc == 4:
                    val = denorm(norm, 'rel'); gui.gui_params['ops'][op]['rel'] = val
                    cmd_q.put(('param', f'ops.{op}.rel', val))
                elif cc == 5:
                    val = denorm(norm, 'fb'); gui.gui_params['fb'] = val
                    cmd_q.put(('param', 'fb', val))
                elif cc == 6:
                    val = int(1 + norm * 2); gui.gui_params['algo'] = val
                    cmd_q.put(('param', 'algo', val))
                    gui.root.after(0, lambda v=val: gui.algo_var.set(float(v)))
                elif cc == 8:
                    val = norm; gui.gui_params['master_gain'] = val
                    cmd_q.put(('param', 'master_gain', val))

                gui.root.after(0, lambda c=cc, n=norm: gui.knob_vars[c].set(n))

if __name__ == "__main__":
    multiprocessing.set_start_method('spawn', force=True)
    cmd_q, mon_q = multiprocessing.Queue(), multiprocessing.Queue()
    proc = multiprocessing.Process(target=audio_process_entry, args=(cmd_q, mon_q), daemon=True); proc.start()
    root = tk.Tk(); root.geometry("950x700")
    app = SynthGUI(root, cmd_q, mon_q)
    threading.Thread(target=midi_loop, args=(cmd_q, app), daemon=True).start(); root.mainloop()
